X030,Marathon, 0.25 Hp, 1 Ph, 60 Hz, 115/230 V, 1800 Rpm, 48Y Fr,TEAO,

X03,Marathon, 0.25 Hp, 1 Ph, 60 Hz, 115/230 V, 1800 Rpm, 48Y Fr,TEAO,

E-Motor Nations

$436.04

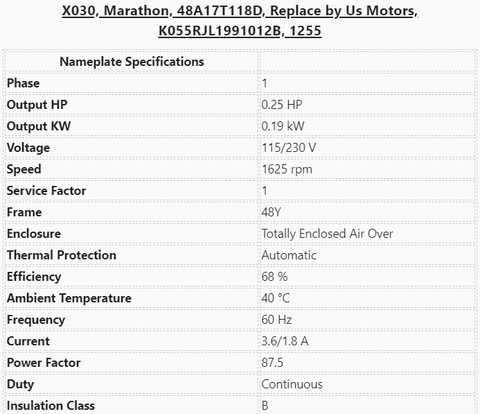

X030, Marathon, 48A17T118D, Replace by Us Motors, K055RJL1991012B, 1255

Nameplate Specifications
Phase	1
Output HP	0.25 HP
Output KW	0.19 kW
Voltage	115/230 V
Speed	1625 rpm
Service Factor	1
Frame	48Y
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Efficiency	68 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.6/1.8 A
Power Factor	87.5
Duty	Continuous
Insulation Class	B
Design Code	NO DESIGN CODE
KVA Code	F
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Yes
CE	No
IP Code	43
Number of Speeds	1

Technical Specifications
Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Resistance Main	0 Ohms
Mounting	Resilient Base - Extended Studs

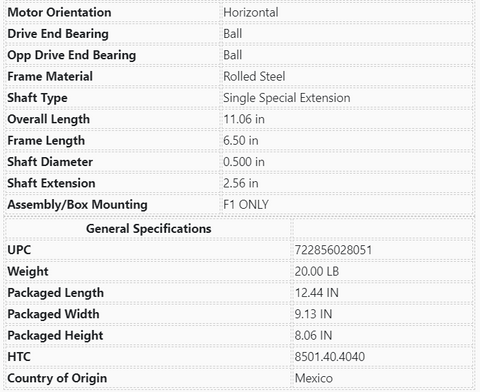

Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Single Special Extension
Overall Length	11.06 in
Frame Length	6.50 in
Shaft Diameter	0.500 in
Shaft Extension	2.56 in
Assembly/Box Mounting	F1 ONLY

General Specifications
UPC	722856028051
Weight	20.00 LB
Packaged Length	12.44 IN
Packaged Width	9.13 IN
Packaged Height	8.06 IN
HTC	8501.40.4040
Country of Origin	Mexico

KEY FEATURES

Double-shielded bearings extend the service life of the motor.
EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
Shaft flingers protect bearings from damage caused by dirt and rain.
Condensation drains allow the motor to expel and drain built-up moisture.
