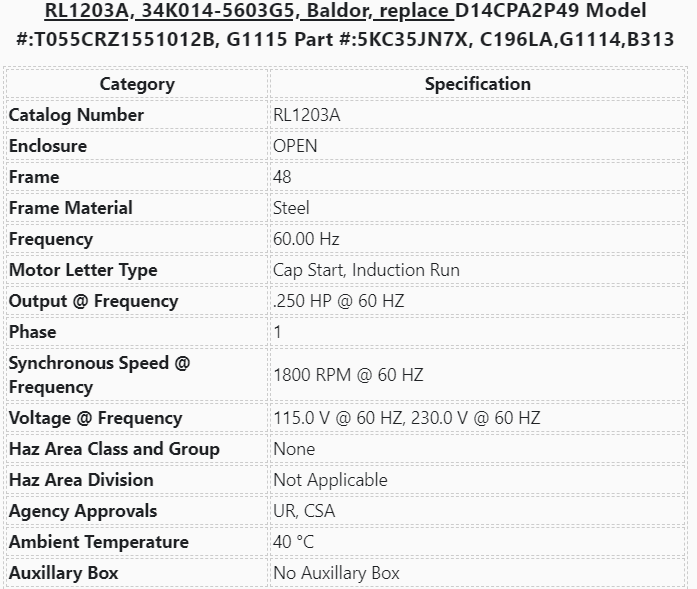

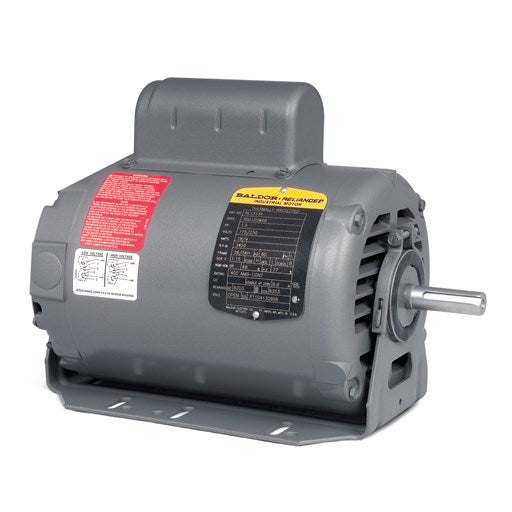

| Catalog Number |
RL1203A |
| Enclosure |
OPEN |
| Frame |
48 |
| Frame Material |
Steel |
| Frequency |
60.00 Hz |
| Motor Letter Type |
Cap Start, Induction Run |
| Output @ Frequency |
.250 HP @ 60 HZ |
| Phase |
1 |
| Synchronous Speed @ Frequency |
1800 RPM @ 60 HZ |
| Voltage @ Frequency |
115.0 V @ 60 HZ, 230.0 V @ 60 HZ |
| Haz Area Class and Group |
None |
| Haz Area Division |
Not Applicable |
| Agency Approvals |
UR, CSA |
| Ambient Temperature |
40 °C |
| Auxillary Box |
No Auxillary Box |

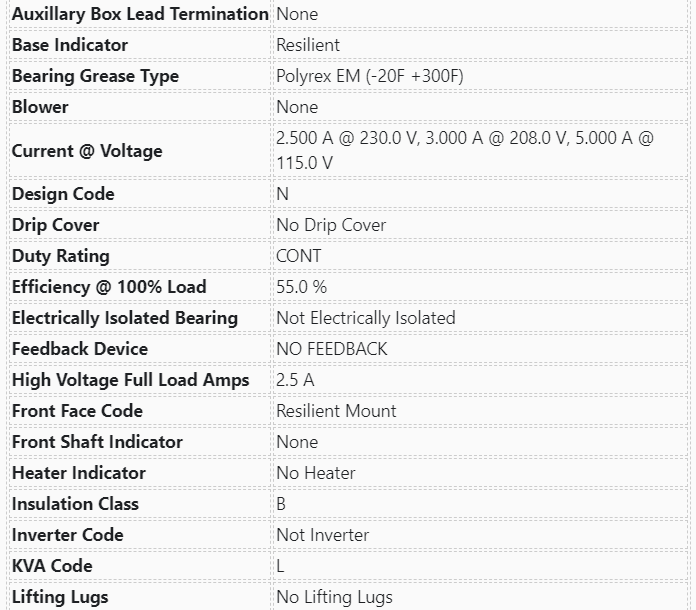

| Auxillary Box Lead Termination |
None |
| Base Indicator |
Resilient |
| Bearing Grease Type |
Polyrex EM (-20F +300F) |
| Blower |
None |
| Current @ Voltage |
2.500 A @ 230.0 V, 3.000 A @ 208.0 V, 5.000 A @ 115.0 V |
| Design Code |
N |
| Drip Cover |
No Drip Cover |
| Duty Rating |
CONT |
| Efficiency @ 100% Load |
55.0 % |
| Electrically Isolated Bearing |
Not Electrically Isolated |
| Feedback Device |
NO FEEDBACK |
| High Voltage Full Load Amps |
2.5 A |
| Front Face Code |
Resilient Mount |
| Front Shaft Indicator |
None |
| Heater Indicator |
No Heater |
| Insulation Class |
B |
| Inverter Code |
Not Inverter |
| KVA Code |
L |
| Lifting Lugs |
No Lifting Lugs |

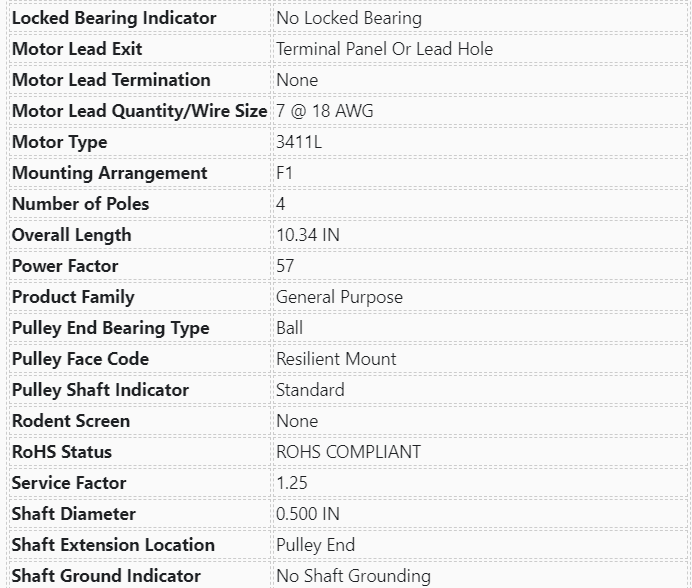

| Locked Bearing Indicator |
No Locked Bearing |
| Motor Lead Exit |
Terminal Panel Or Lead Hole |
| Motor Lead Termination |
None |
| Motor Lead Quantity/Wire Size |
7 @ 18 AWG |
| Motor Type |
3411L |
| Mounting Arrangement |
F1 |
| Number of Poles |
4 |
| Overall Length |
10.34 IN |
| Power Factor |
57 |
| Product Family |
General Purpose |
| Pulley End Bearing Type |
Ball |
| Pulley Face Code |
Resilient Mount |
| Pulley Shaft Indicator |
Standard |
| Rodent Screen |
None |
| RoHS Status |
ROHS COMPLIANT |
| Service Factor |
1.25 |
| Shaft Diameter |
0.500 IN |
| Shaft Extension Location |
Pulley End |
| Shaft Ground Indicator |
No Shaft Grounding |

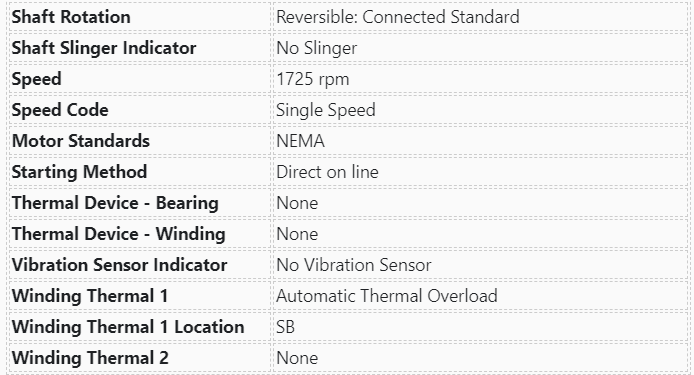

| Shaft Rotation |
Reversible: Connected Standard |
| Shaft Slinger Indicator |
No Slinger |
| Speed |
1725 rpm |
| Speed Code |
Single Speed |
| Motor Standards |
NEMA |
| Starting Method |
Direct on line |
| Thermal Device - Bearing |
None |
| Thermal Device - Winding |
None |
| Vibration Sensor Indicator |
No Vibration Sensor |
| Winding Thermal 1 |
Automatic Thermal Overload |
| Winding Thermal 1 Location |
SB |
| Winding Thermal 2 |
None |
