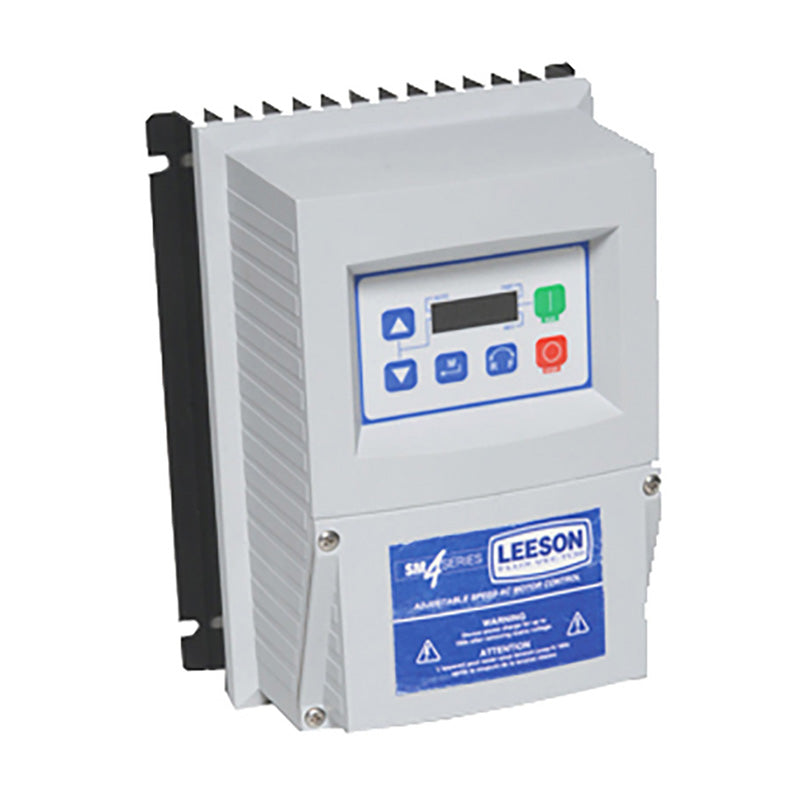

174702.00,VFD, 20 Hp, 480V,IP65,Nema4x,3Ph,27A,ESV153N04TXD,SMV Series
174702.00 Leeson, Lenze ESV153N04TXD,
SPECIFICATIONS
| HP | 20 |
| INPUT VOLTAGE | 400/480 |
| INVERTER OR VECTOR DUTY | Vector Duty |
| ENCLOSURE | NEMA 4X – Indoor Only, Fan Cooled |
| HORSEPOWER CONSTANT TORQUE | 20 hp |
| PHASE | Three Phase |
| HEIGHT | 14.4 |
| INPUT PHASE | Three Phase |
| LOAD TYPE | Constant Torque, Variable Torque |
| OUTPUT CURRENT CONTINUOUS AMPS | 27 A, 31 A |
| WASHDOWN DUTY | Yes |
| INTEGRATED LINE DISCONNECT | No |
| EMC FILTER | No |
| DEPTH | 9.5 in |
| WEIGHT | 23.0 LB |
• Features : Dynamic Torque Response Two Independent Accel Ramps and two Independent Decel Ramps Linear, S-Type, Auxiliary Ramp-to-Stop Fixed Accel Boost for Improved Starting 500 Hz Output Frequency (1,000 Hz Optional)
- Switching Frequency : 4, 6, 8, 10,12 or 16 kHz
- Universal Logic Assertion (Selectable): Positive or Negative Logic Input
- Braking Functions : DC Injection Braking
- DC Injection Braking Optional Regenerative Braking Over Temperature Protection
- Speed Commands : Keypad Potentiometer Jog Floating Point Control & 8 Preset Speeds Voltage: Scalable 0 - 10 VDC Current: Scalable 4 - 20 mA
- Process Control : PID Modes: Direct and Reverse Acting, sleep mode
- Voltage Monitoring : High - Low DC Bus V Protection Low Line V Compensation
- Current Monitoring : Motor Overload Protection Current Limiting Safeguard Phase Loss Protection Ground Fault Short Circuit Protection
