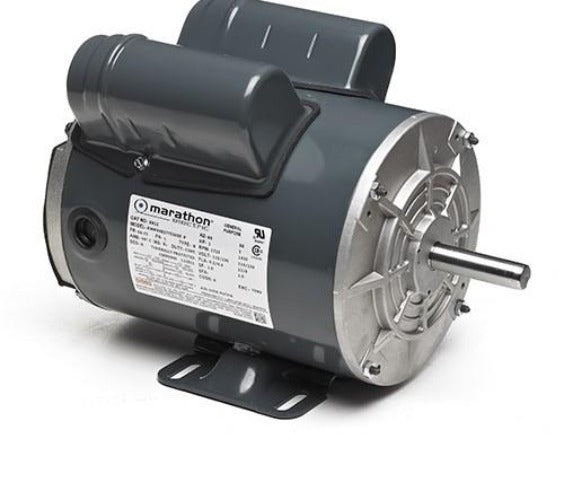

X912, Marathon, 1 Hp, 1725 Rpm. 115/230V, Fr 56,056B17T5303,TENV, 1Ph,

MARATHON

$752.53

X912, Marathon, Model 056B17T5303,

1 Hp	Output KW:	0.75 kW
Frequency:	60 Hz	Voltage:	115/230 V
Current:	9.2/4.6 A	Speed:	1725 rpm
Service Factor:	1	Phase:	1
Efficiency:	81.1 %	Power Factor:	86.2
Duty:	Continuous	Insulation Class:	B
Design Code:	N	KVA Code:	K
Frame:	56	Enclosure:	Totally Enclosed Non Ventilated
Thermal Protection:	Automatic Lock Rotor Only	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	43
