B206, 1/4 HP , 1725 RPM, 115 VOLTS, FRAME 48Z, ODP, MARATHON ELECTRIC MOTORS, 48S17D2107 - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur

B206, Marathon, 1/4 HP , 1725 RPM, 115V, FR: 48Z, ODP,48S17D2107, GF2024 Ao SMITH

MARATHON

$250.77

B206, Marathon, 1/4 HP, 115V, 1800 RPM, 1PH, DRIP PROOF, FRAME 48Z, ODP, 048S17D2107,MARATHON, CENTURY, GF2024, ROTOM // ALLTEMP, BF-4701, RB2024

General Specifications

UPC:	722856022066	Weight:	14.00 LB
Packaged Length:	11.06 IN	Packaged Width:	6.75 IN
Packaged Height:	6.62 IN

Nameplate Specifications

Output HP:	0.25 Hp	Output KW:	0.19 kW
Frequency:	60 Hz	Voltage:	115 V
Current:	5.0 A	Speed:	1725 rpm
Service Factor:	1.35	Phase:	1
Efficiency:	58 %	Power Factor:	59
Duty:	Continuous	Insulation Class:	B
Design Code:	NO DESIGN CODE	KVA Code:	P
Frame:	48Z	Enclosure:	Drip Proof
Thermal Protection:	Automatic	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	Y	IP Code:	22
Number of Speeds:	1

Technical Specifications

Electrical Type:	Split Phase	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Mounting:	Resilient Base	Motor Orientation:	Horizontal
Drive End Bearing:	Ball	Opp Drive End Bearing:	Ball
Frame Material:	Rolled Steel	Shaft Type:	Single Special Extension
Overall Length:	9.62 in	Shaft Diameter:	0.500 in
Shaft Extension:	2.01 in	Assembly/Box Mounting:	F1 ONLY

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (OZ-FT)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Locked-Rotor	27.65	0.0	21.60	0.0	0	0.00	0.0	0.25
Pull-Up	0.00	0.0	19.44	0.0	0	0.00	0.0	0.25
Break-Down	0.00	0.0	31.53	0.0	0	0.00	0.0	0.25

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	115 %	135 %
Current (Amps)	3.96	4.04	4.18	4.41	4.72	4.95	5.31
Rated Output (KW)	0.10	0.15	0.21	0.26	0.32	0.36	0.41
Efficiency (%)	0.0	31.3	46.1	54.0	58.0	59.3	60.1
Power Factor (%)	24.0	32.8	42.7	51.4	59.0	63.0	67.3
Speed (RPM)	1,789	1,776	1,761	1,745	1,728	1,717	1,702
Temp. Rise @ FL	0.0	0.0	0.0	0.0	0.0	0.0	0.0
Torque (OZ-FT)	0.00	3.02	6.05	9.08	12.10	13.91	16.33

Nous vous recommandons également

A301, Marathon, BRAKE KITS, 3 LBS/FEET, FR: 56, 230/460V, KIT 3BRK3,A297

A302, Marathon, BRAKE KITS, 6 LBS/FEET, FR: 56, 208-230/460V, KIT 6BRK3

A313, Marathon, KIT BM10BRK, Brake Kits, 10 FT/ LB. 3 PH, 230/460V, 3PH

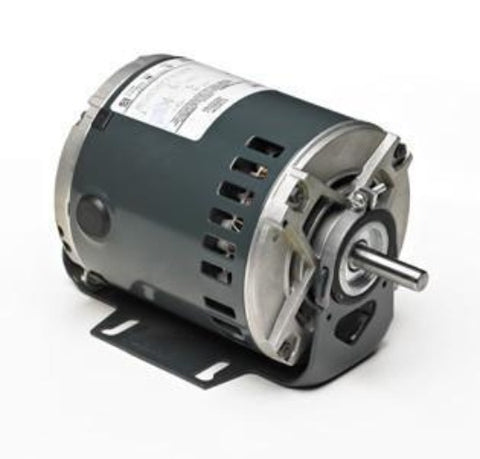

B207, 1/3 HP, 1725 RPM, 115 VOLTS, FRAME 48Y, ODP, MARATHON ELECTRIC MOTORS, 048S17D2108 - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur
