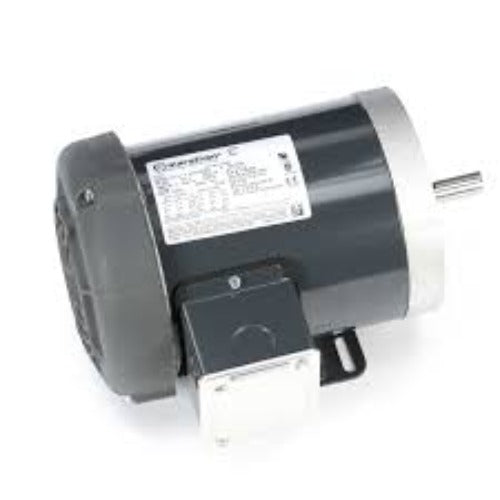

K701A, Marathon, 1 Hp, 1140 Rpm, 230/460V, FR: 56C, 056T11F15521, K701, 056T11F5307

MARATHON

  • $867.75


K701A, 056T11F15521, K701, 056T11F5307

Model : 056T11F15521 Catalog No : K701A
Part Description : 1,1200,TEFC,56HC,3/60/230/460 Category : Totally Enclosed Fan Cooled (TEFC)
Stock : Yes
Nameplate Specifications

Technical Specifications

Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 6 Rotation : Reversible
Mounting : Bolt-on Base Motor Orientation : Horizontal Or Up Or Down
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 15.15 in Frame Length : 9.65 in
Shaft Diameter : 0.625 in Shaft Extension : 1.87 in
Assembly/Box Mounting : F1 ONLY UPC : 722856051998
Weight : 47.00 LB
