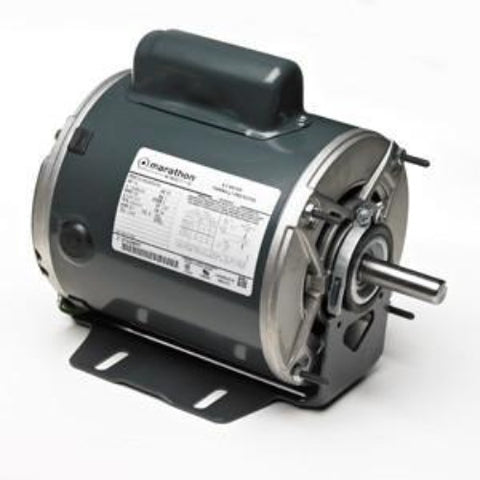

B315, Marathon, 1/3 hp,1725 rpm,115/230V, fr 48Z,48C17D2044,drip proof

MARATHON

$375.57

B315, Marathon, 48C17D2044,

General Specifications

UPC:	722856023155	Weight:	17.00 LB
Packaged Length:	12.44 IN	Packaged Width:	9.13 IN
Packaged Height:	8.06 IN

Nameplate Specifications

Output HP:	0.33 Hp	Output KW:	0.25 kW
Frequency:	60 Hz	Voltage:	115/208-230 V
Current:	5.8/3.1-2.9 A	Speed:	1725 rpm
Service Factor:	1.35	Phase:	1
Efficiency:	64 %	Power Factor:	60
Duty:	Continuous	Insulation Class:	B
Design Code:	NO DESIGN CODE	KVA Code:	J
Frame:	48Z	Enclosure:	Drip Proof
Thermal Protection:	Automatic	Ambient Temperature:	40 °C
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	22
Number of Speeds:	1

Technical Specifications

Electrical Type:	Capacitor Start Induction Run	Starting Method:	Across The Line
Poles:	4	Rotation:	Selective Counterclockwise
Resistance Main:	0 Ohms	Mounting:	Resilient Base - Extended Studs
Motor Orientation:	Horizontal	Drive End Bearing:	Ball
Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
Shaft Type:	Single Special Extension	Overall Length:	10.22 in
Frame Length:	6.25 in	Shaft Diameter:	0.500 in
Shaft Extension:	1.97 in	Assembly/Box Mounting:	F1 ONLY

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (OZ-FT)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Pull-Up	10.70	369.0	26.30	164.0	121	2.10	0.0	0.33
Locked-Rotor	10.70	369.0	28.90	181.0	0	2.10	0.0	0.33
Full Load	2.90	100.0	16.00	100.0	1,735	0.39	0.0	0.33
Break-Down	6.30	217.0	38.00	238.0	1,507	1.10	0.0	0.33

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %	135 %	150 %	175 %	200 %
Current (Amps)	2.11	2.19	2.28	2.48	2.90	3.00	3.10	3.13	3.94	5.10
Rated Output (KW)	0.10	0.16	0.23	0.31	0.39	0.48	0.52	0.52	0.71	0.94
Efficiency (%)	0.0	39.1	54.7	61.4	64.0	65.4	65.5	65.4	61.9	53.0
Power Factor (%)	21.2	32.2	43.9	54.5	60.0	69.3	71.2	71.5	77.8	80.1
Speed (RPM)	1,800	1,784	1,771	1,757	1,735	1,724	1,715	1,716	1,671	1,593
Temp. Rise @ FL	0.0	0.0	0.0	0.0	30.0	0.0	62.0	0.0	0.0	0.0
Torque (OZ-FT)	0.00	4.00	8.00	12.00	16.00	20.30	22.06	22.10	29.40	35.20

B315,
1/3 HP
1725 RPM
115/208-230 VOLTS
5.8/3.1-2.9 AMPS
FRAME 48Z
SHAFT 1/2''
DRIP PROOF
RESILENT BASE
REVERSIBLE
CAPACITOR START
CONTINOUS DUTY
BALL BEARING
MARATHON ELECTRIC MOTOR
