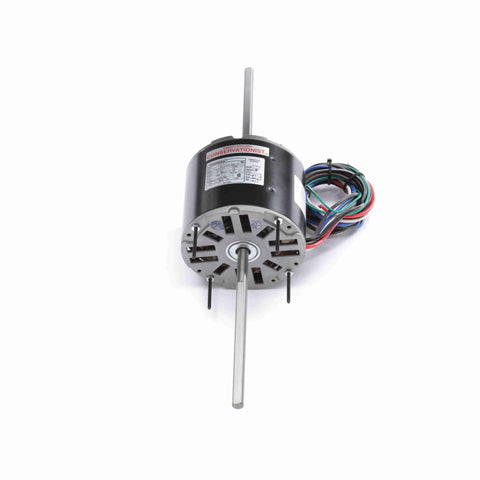

XRAL1036, Xactone Fan Coil & Air Conditioner Motor, 1/3 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED

E-Motor Nations

$268.01

XRAL1036, Xactone Fan Coil & Air Conditioner Motor, 1/3 HP, 1 Ph, 60 Hz, 115 V, 1075 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED, Rotom R52101

Equivalent : Century RAL1036

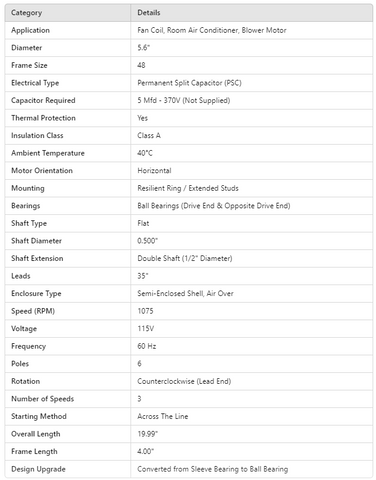

Category	Details
Application	Fan Coil, Room Air Conditioner, Blower Motor
Diameter	5.6"
Frame Size	48
Electrical Type	Permanent Split Capacitor (PSC)
Capacitor Required	5 Mfd - 370V (Not Supplied)
Thermal Protection	Yes
Insulation Class	Class A
Ambient Temperature	40°C
Motor Orientation	Horizontal
Mounting	Resilient Ring / Extended Studs
Bearings	Ball Bearings (Drive End & Opposite Drive End)
Shaft Type	Flat
Shaft Diameter	0.500"
Shaft Extension	Double Shaft (1/2" Diameter)
Leads	35"
Enclosure Type	Semi-Enclosed Shell, Air Over
Speed (RPM)	1075
Voltage	115V
Frequency	60 Hz
Poles	6
Rotation	Counterclockwise (Lead End)
Number of Speeds	3
Starting Method	Across The Line
Overall Length	19.99"
Frame Length	4.00"
Design Upgrade	Converted from Sleeve Bearing to Ball Bearing
