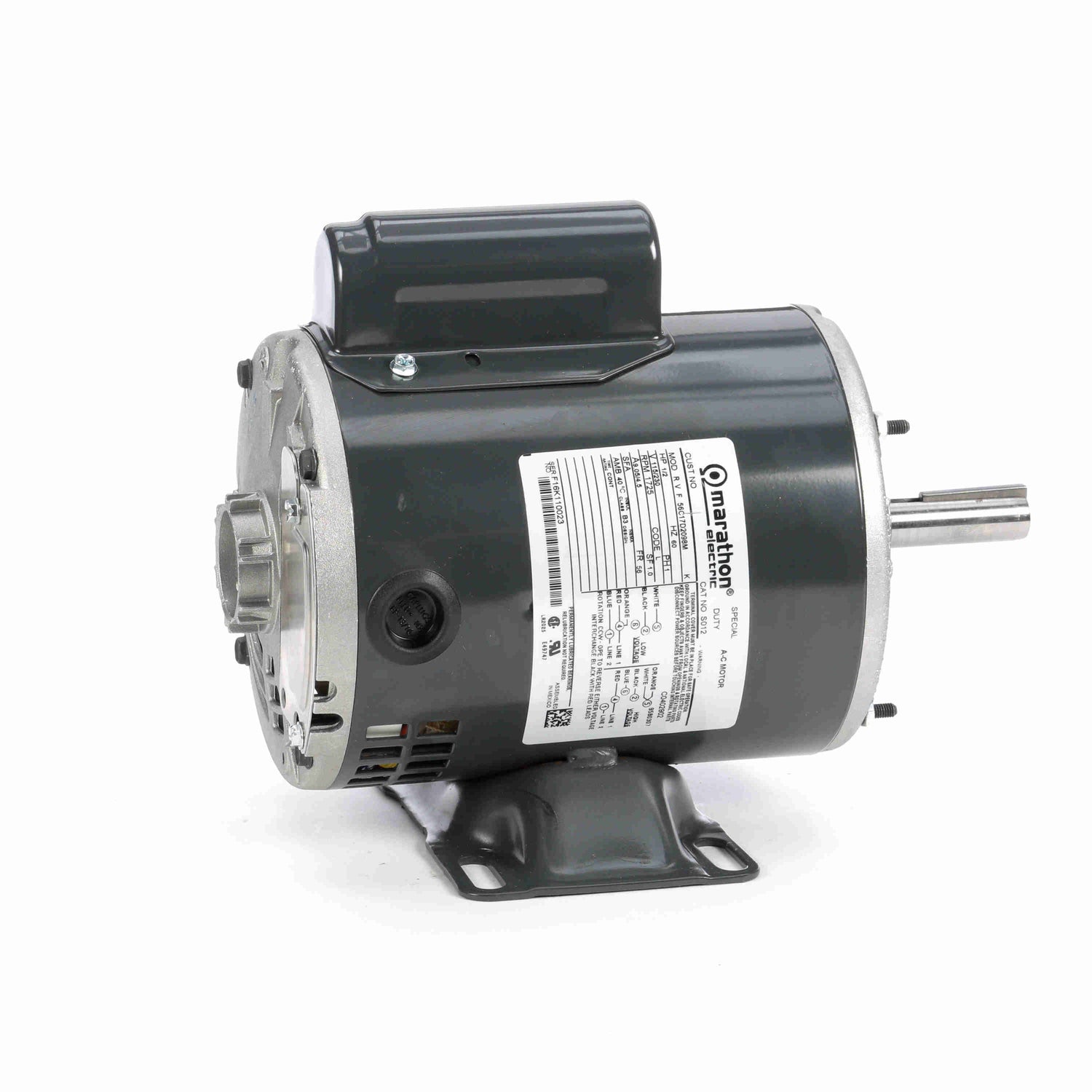

X701, 048S17D1084, Marathon, 0.13Hp, 1725 Rpm, 115 Volts, Frame:48Z, DP
X701,048S17D1084, Marathon

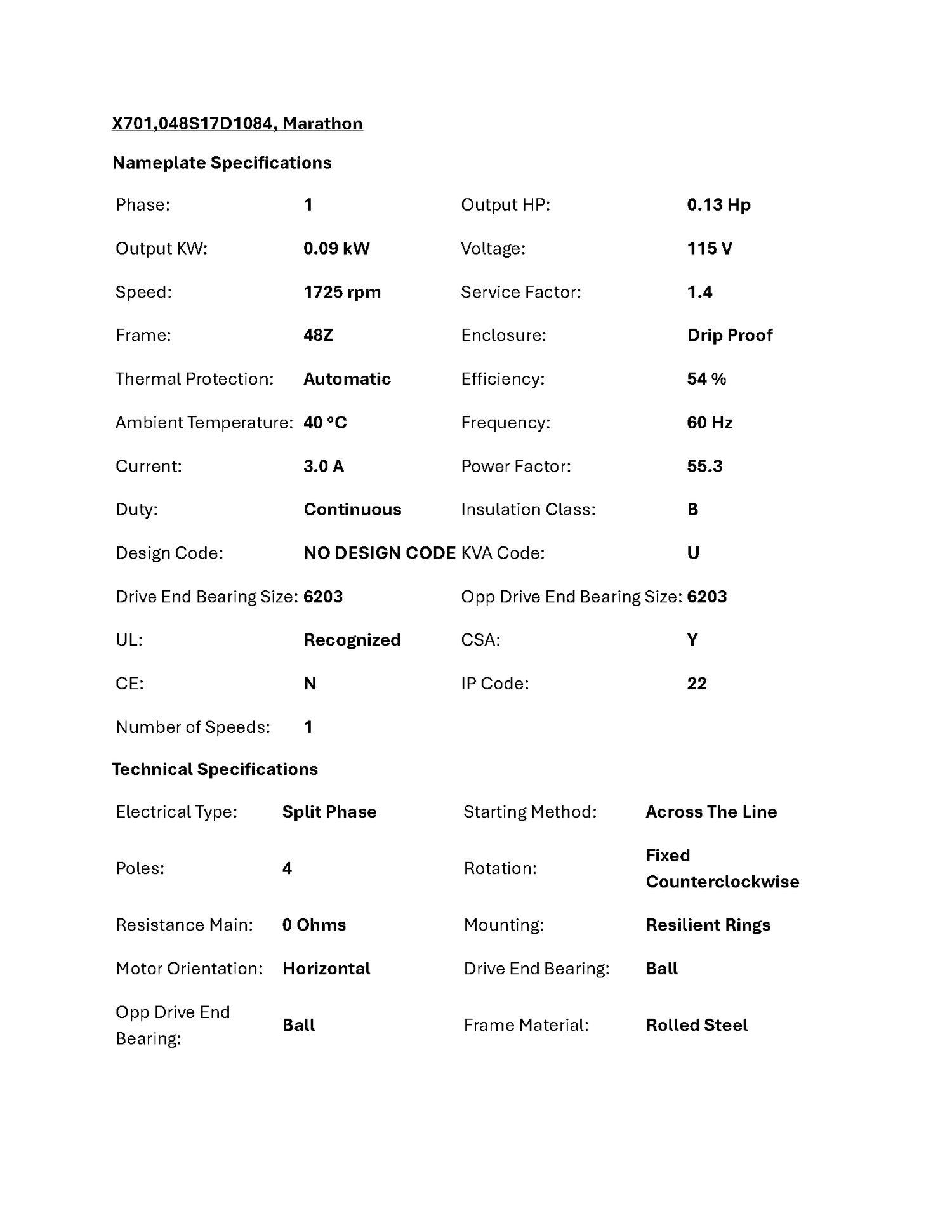

Nameplate Specifications
| Phase: | 1 | Output HP: | 0.13 Hp |
| Output KW: | 0.09 kW | Voltage: | 115 V |
| Speed: | 1725 rpm | Service Factor: | 1.4 |
| Frame: | 48Z | Enclosure: | Drip Proof |
| Thermal Protection: | Automatic | Efficiency: | 54 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 Hz |
| Current: | 3.0 A | Power Factor: | 55.3 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | NO DESIGN CODE | KVA Code: | U |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | Across The Line |
| Poles: | 4 | Rotation: | Fixed Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Rings |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Single Special Extension | Assembly/Box Mounting: | F1 ONLY |

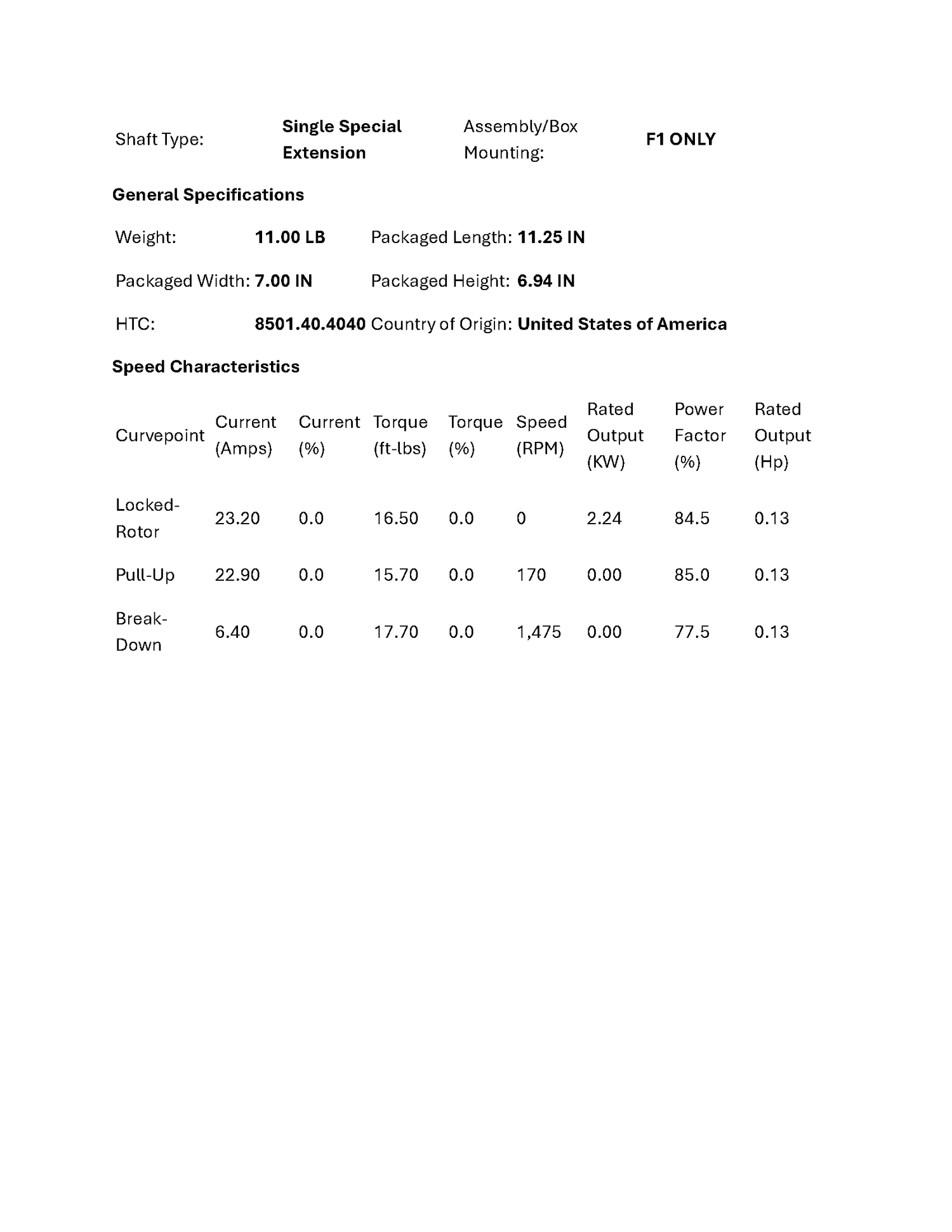

General Specifications
| Weight: | 11.00 LB | Packaged Length: | 11.25 IN |
| Packaged Width: | 7.00 IN | Packaged Height: | 6.94 IN |
| HTC: | 8501.40.4040 | Country of Origin: | United States of America |
Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 23.20 | 0.0 | 16.50 | 0.0 | 0 | 2.24 | 84.5 | 0.13 |
| Pull-Up | 22.90 | 0.0 | 15.70 | 0.0 | 170 | 0.00 | 85.0 | 0.13 |
| Break-Down | 6.40 | 0.0 | 17.70 | 0.0 | 1,475 | 0.00 | 77.5 | 0.13 |
