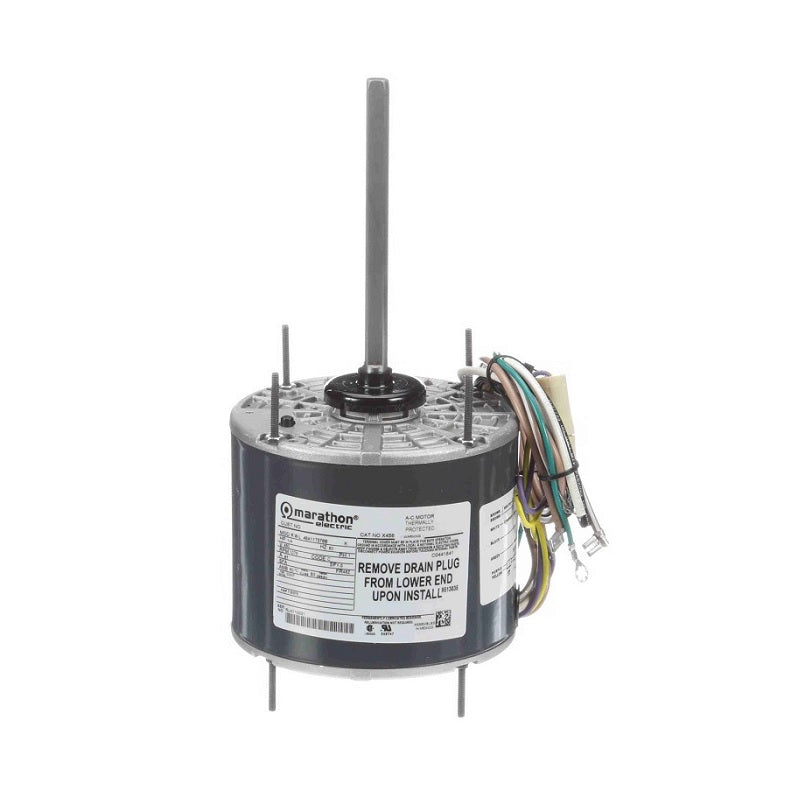

X412, Marathon, 1/4Hp, 1075Rpm, 208/230V, 048A11T569, K055MAF0217012B

E-Motor Nations

$299.00

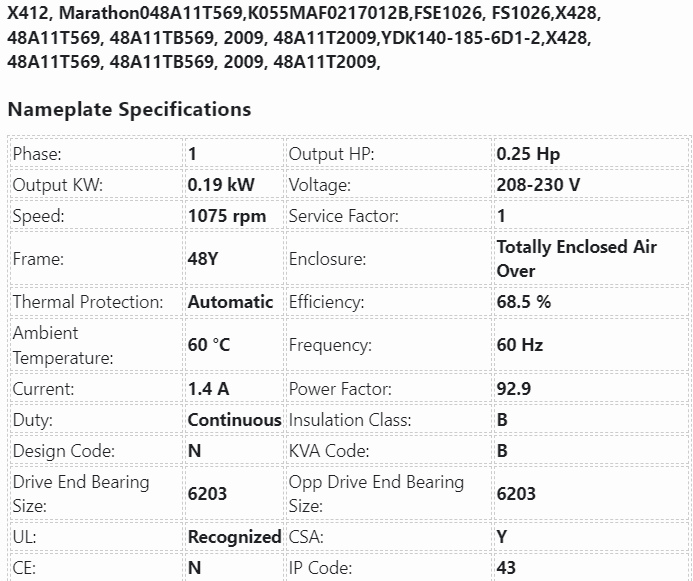

X412, Marathon048A11T569,K055MAF0217012B,FSE1026, FS1026,X428, 48A11T569, 48A11TB569, 2009, 48A11T2009,YDK140-185-6D1-2,X428, 48A11T569, 48A11TB569, 2009, 48A11T2009,

Nameplate Specifications

Phase:	1	Output HP:	0.25 Hp
Output KW:	0.19 kW	Voltage:	208-230 V
Speed:	1075 rpm	Service Factor:	1
Frame:	48Y	Enclosure:	Totally Enclosed Air Over
Thermal Protection:	Automatic	Efficiency:	68.5 %
Ambient Temperature:	60 °C	Frequency:	60 Hz
Current:	1.4 A	Power Factor:	92.9
Duty:	Continuous	Insulation Class:	B
Design Code:	N	KVA Code:	B
Drive End Bearing Size:	6203	Opp Drive End Bearing Size:	6203
UL:	Recognized	CSA:	Y
CE:	N	IP Code:	43
Number of Speeds:	1

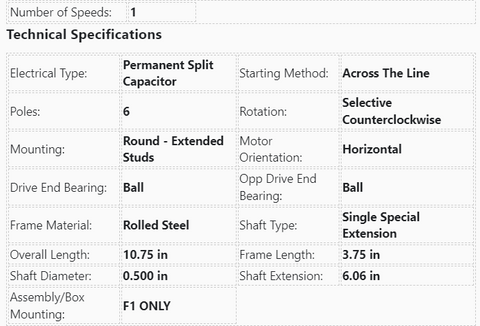

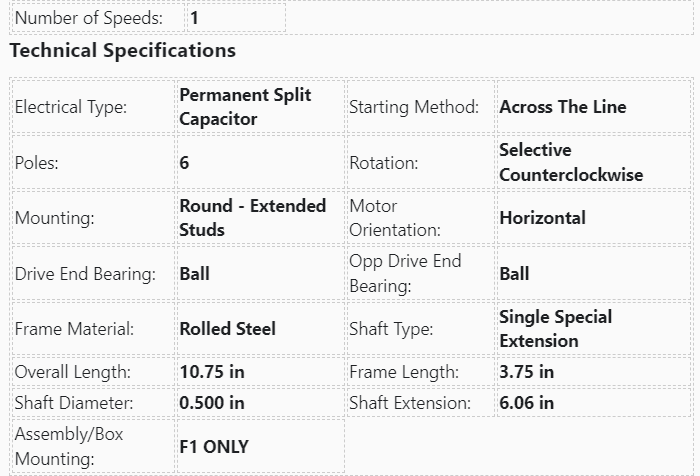

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	6	Rotation:	Selective Counterclockwise
Mounting:	Round - Extended Studs	Motor Orientation:	Horizontal
Drive End Bearing:	Ball	Opp Drive End Bearing:	Ball
Frame Material:	Rolled Steel	Shaft Type:	Single Special Extension
Overall Length:	10.75 in	Frame Length:	3.75 in
Shaft Diameter:	0.500 in	Shaft Extension:	6.06 in
Assembly/Box Mounting:	F1 ONLY

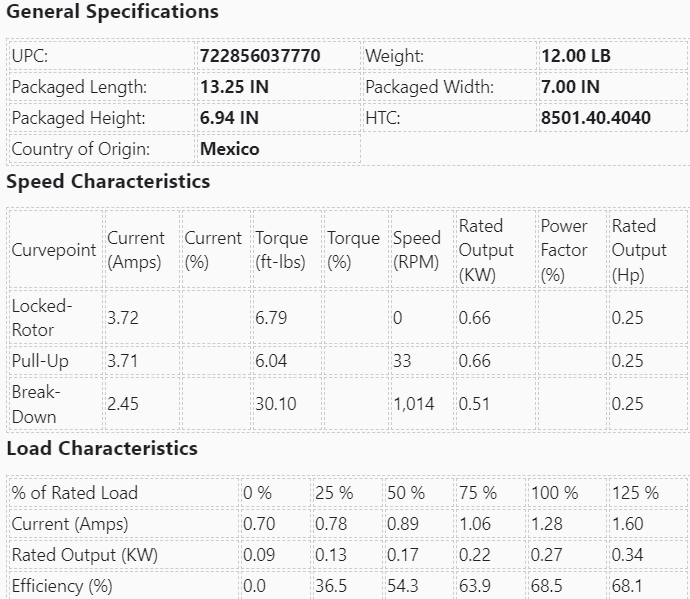

General Specifications

UPC:	722856037770	Weight:	12.00 LB
Packaged Length:	13.25 IN	Packaged Width:	7.00 IN
Packaged Height:	6.94 IN	HTC:	8501.40.4040
Country of Origin:	Mexico

Speed Characteristics

Curvepoint	Current (Amps)	Current (%)	Torque (ft-lbs)	Torque (%)	Speed (RPM)	Rated Output (KW)	Power Factor (%)	Rated Output (Hp)
Locked-Rotor	3.72		6.79		0	0.66		0.25
Pull-Up	3.71		6.04		33	0.66		0.25
Break-Down	2.45		30.10		1,014	0.51		0.25

Load Characteristics

% of Rated Load	0 %	25 %	50 %	75 %	100 %	125 %
Current (Amps)	0.70	0.78	0.89	1.06	1.28	1.60
Rated Output (KW)	0.09	0.13	0.17	0.22	0.27	0.34
Efficiency (%)	0.0	36.5	54.3	63.9	68.5	68.1

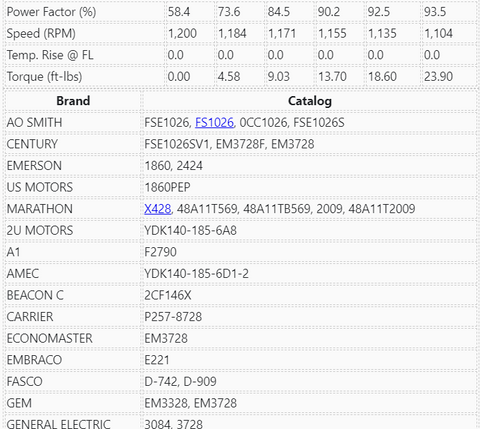

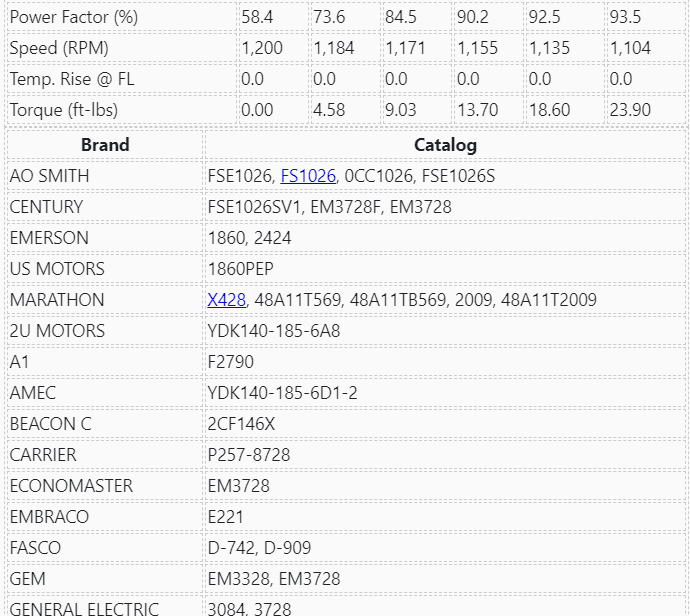

Power Factor (%)	58.4	73.6	84.5	90.2	92.5	93.5
Speed (RPM)	1,200	1,184	1,171	1,155	1,135	1,104
Temp. Rise @ FL	0.0	0.0	0.0	0.0	0.0	0.0
Torque (ft-lbs)	0.00	4.58	9.03	13.70	18.60	23.90

Brand	Catalog
AO SMITH	FSE1026, FS1026, 0CC1026, FSE1026S
CENTURY	FSE1026SV1, EM3728F, EM3728
EMERSON	1860, 2424
US MOTORS	1860PEP
MARATHON	X428, 48A11T569, 48A11TB569, 2009, 48A11T2009
2U MOTORS	YDK140-185-6A8
A1	F2790
AMEC	YDK140-185-6D1-2
BEACON C	2CF146X
CARRIER	P257-8728
ECONOMASTER	EM3728
EMBRACO	E221
FASCO	D-742, D-909
GEM	EM3328, EM3728
GENERAL ELECTRIC	3084, 3728

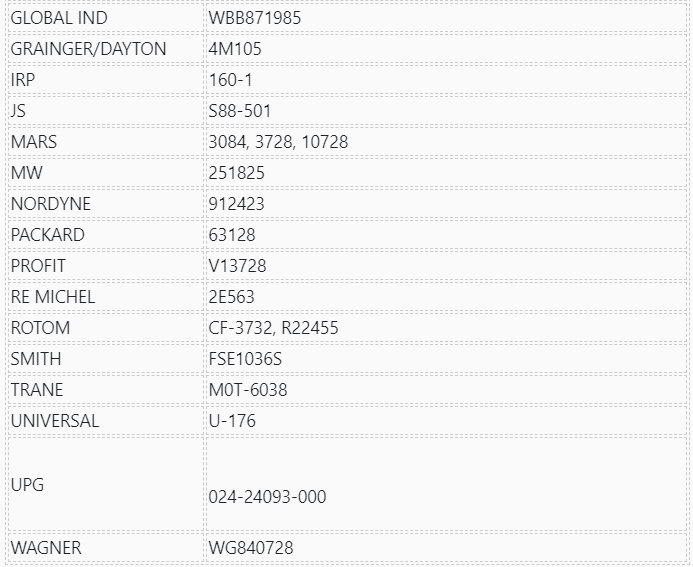

GLOBAL IND	WBB871985
GRAINGER/DAYTON	4M105
IRP	160-1
JS	S88-501
MARS	3084, 3728, 10728
MW	251825
NORDYNE	912423
PACKARD	63128
PROFIT	V13728
RE MICHEL	2E563
ROTOM	CF-3732, R22455
SMITH	FSE1036S
TRANE	M0T-6038
UNIVERSAL	U-176
UPG	024-24093-000
WAGNER	WG840728
