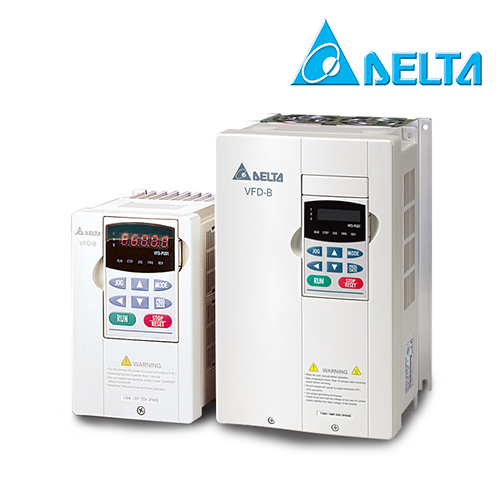

VFD110B53A, Delta, VFD, 15 HP, 600V, 3PH, VFD,Nema1, Variable fréquency Drive

• VFD110B53A,
• 11KW / 15 HP
• 600-690 VOLTS
• 3 PHASES
• INPUT AMPS 19.0
• OUTPUT AMPS 17.0
• NEMA 1
• BRAKING MODULE

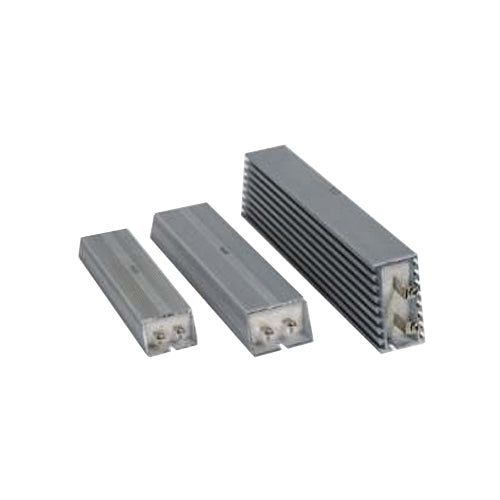

• BRAKING RESISTORS
• DIMENSION 200 x 323 x 183.2
• DELTA ELECTRONICS
• VFD

• Volt/Hertz, Sensorless vector & Closed loop vector control

• All VFD-B drives are Constant Torque rated.

• Programmable (0 ~ 2000Hz) for high speed applications.

• The output current is adjustable up to 120% of the

  drive’s nominal capacity.

• All “240/1/60” models also accept three phase input.

• Inputs: 11 digital (4 dedicated & 7 programmable) & 3 analog.

• Outputs: 4 digital, 1 analog & 1 digital frequency output.

• RS-485 communication port, standard protocol Modbus RTU & ASCII.

• B series drives have built-in dynamic braking transistors up to 15HP.

• Please refer to the “VFD Accessories” section for all available options.

Specifications
Item Number: VFD110B53A
Manufacturer: Delta Products
Item Category: Drives
Series: VFD-B
Nominal Input VAC: 575 Volts AC
Input Range VAC: 500 to 600 Volts AC
HP 15
Amps (CT): 19 Amps
Input Phase: 3
Operator Controls: Keypad Included
Max. Frequency: 400 Hertz
Braking Type: DC Injection;Dynamic Braking
Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
Closed Loop: No
AC Line Regenerative: No
Dynamic Braking  Included
Enclosure Rating: NEMA 1
