Us motors, FD1CM2PZ, 1 hp, 1800 rpm, 115/230v, fr:56, c063FKJ5564015B, f104

E-Motor Nations

$329.00

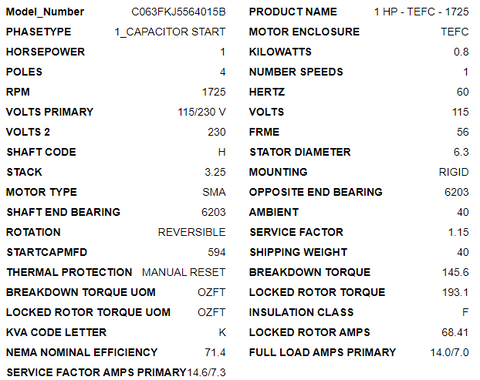

US MOTOR FD1CM2PZ, MODEL, C063FKJ5564015B, REPLACED MARATHON F104, F134, 056C17F5327, 056C17F5914,

Horsepower :1

Voltage :115/230

Amps :14.0/7.0

RPM :1800

Frequency :60 Hz

"C" Dim. :12-7/8"

Enclosure :Totally Enclosed Fan Cooled

Type :Capacitor Start

Diameter :6-1/2"

Frame :56H

Efficiency :71.4%

Bearings :Ball

Rotation :Reversible

Protector :Manual

Service Factor :1.15

Phase :1

Ambient Temp. :40°C

Feature(s) :Manual Reset Thermal Protector Overload

Weight (lbs.) :40
