TF.33102W01DOE, TF.75102W01DOE, TF000102W01DOE, TF000104W01DOE, TF001102W01DOE, TF002104W01DOE, TF003102W01DOE,

TF002104W01DOE, Rolled Steel 2Hp 1735 Rpm 4P 56H 1Ph 115/208-230 V 60 Hz IC411 - TEFC - Foot-mounted

E-Motor Nations

$595.42

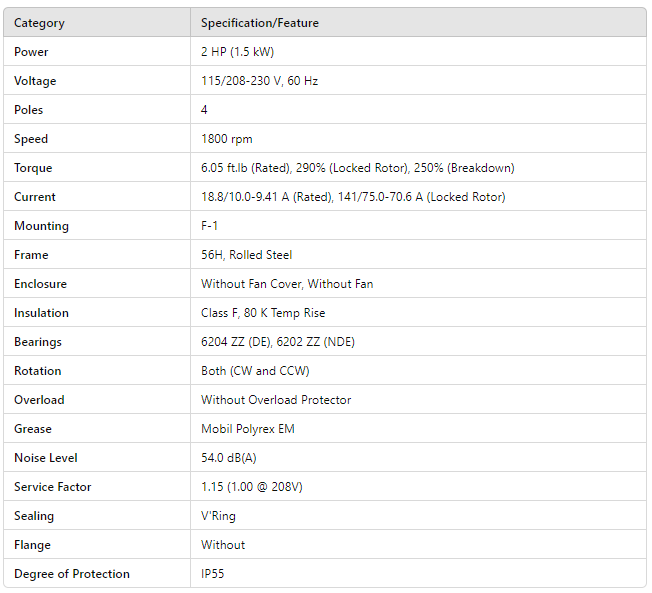

Category	Specification/Feature
Power	2 HP (1.5 kW)
Voltage	115/208-230 V, 60 Hz
Poles	4
Speed	1800 rpm
Torque	6.05 ft.lb (Rated), 290% (Locked Rotor), 250% (Breakdown)
Current	18.8/10.0-9.41 A (Rated), 141/75.0-70.6 A (Locked Rotor)
Mounting	F-1
Frame	56H, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6204 ZZ (DE), 6202 ZZ (NDE)
Rotation	Both (CW and CCW)
Overload	Without Overload Protector
Grease	Mobil Polyrex EM
Noise Level	54.0 dB(A)
Service Factor	1.15 (1.00 @ 208V)
Sealing	V'Ring
Flange	Without
Degree of Protection	IP55
