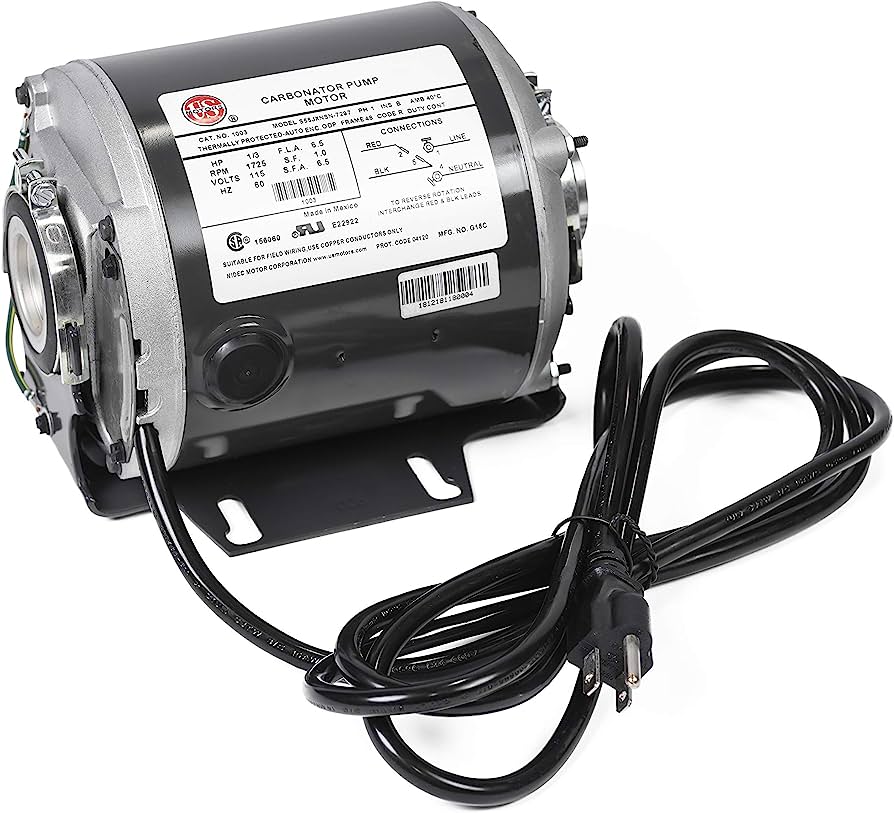

SS1003, Omnidrive, 1/3 hp, 1725 rpm,115 Volts, S055NSN7297032J, Carbonator pump,

MARATHON

$298.27

SS1003, Omnidrive, Replace US Motors, S055NSN7297032J. Century, Ao Smith CB2034A, , Carbonator pump, Marathon 5KH32FN5586X, 4406,

Nameplate Specifications

Phase:	1	Output HP:	1/3 Hp
Output KW:	0.25 kW	Voltage:	115 V
Speed:	1725 rpm	Service Factor:	1
Frame:	48Y	Enclosure:	Open Enclosed
Thermal Protection:	Automatic	Efficiency:	55 %
Ambient Temperature:	40 °C	Frequency:	60 Hz
Current:	6.2 A	Duty:	Continuous
Insulation Class:	B	UL:	No
CSA:	Y	CE:	N
Number of Speeds:	1

Technical Specifications

Electrical Type:	Split Phase	Starting Method:	Across The Line
Poles:	4	Rotation:	Counterclockwise
Mounting:	Resilient Base	Drive End Bearing:	Sleeve
Opp Drive End Bearing:	Sleeve	Frame Material:	Rolled Steel
Shaft Type:	Slot	Overall Length:	8.63 in
Frame Length:	4.94 in	Shaft Diameter:	0.625 in
Shaft Extension:	0.28 in

General Specifications

UPC:	786674017109	Weight:	14.00 LB
Packaged Length:	11 IN	Packaged Width:	7.5 IN
Packaged Height:	7 IN	HTC:	8501.40.4040
Country of Origin:	Mexico
