PESW-B9D39EX-R61, Enclosed Starter, 3Hp@460, 480 V Coil with Stop-Reset Pushbuttons - Three Phase, 14655501

PESW-B9D39EX-R61, Enclosed Starter, 3Hp@460, 480 V Coil with Stop-Reset Pushbuttons - Three Phase, 14655501

This item replaced PESW-9V47EX-R27

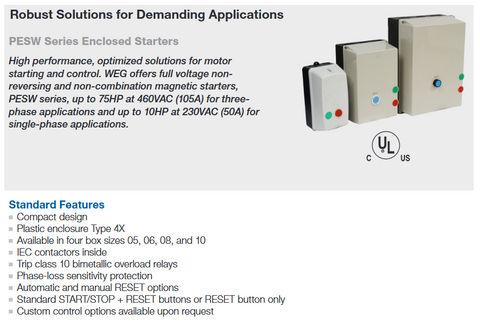

PESW Series Enclosed Starters

High performance, optimized solutions for motor
starting and control. WEG offers full voltage non-
reversing and non-combination magnetic starters,
PESW series, up to 75HP at 460VAC (105A) for three-
phase applications and up to 10HP at 230VAC (50A) for
single-phase applications.

Standard Features:

• Compact design
• Plastic enclosure Type 4X

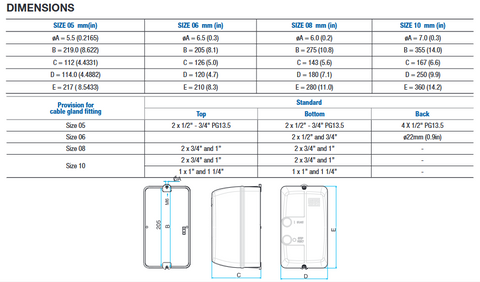

• Available in four box sizes 05, 06, 08, and 10
• IEC contactors inside
• Trip class 10 bimetallic overload relays
• Phase-loss sensitivity protection
• Automatic and manual RESET options
• Standard START/STOP + RESET buttons or RESET button only
• Custom control options available upon request
