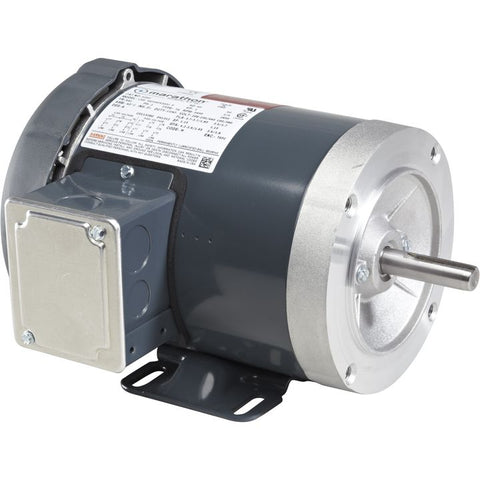

K722A, 056T17F15645,1.HP, 1800 RPM, 575V,MARATHON,FR:56HC, 056T17F5339

MARATHON

$711.83

K722A, 056T17F15645, MARATHON, MPR-154CW, MPRP-154CW, K722, 056T17F5339 MARATHON

Nameplate Specifications

Output HP :	1.5 Hp
Output KW :	1.12 kW
Frequency :	60 Hz
Voltage :	575 V
Current :	1.85 A
Speed :	1725 rpm
Service Factor :	1.15
Phase :	3
Efficiency :	86.5 %
Duty :	CONTINUOUS
Insulation Class :	F
Design Code :	B
KVA Code :	P
Frame :	56HC
Enclosure :	TEFC
Overload Protector :	NOT
Ambient Temperature :	40 °C
Drive End Bearing Size :	6205
Opp Drive End Bearing Size :	6203
UL :	Recognized
CSA :	Y
CE :	Y
IP Code :	43

Technical Specifications

Electrical Type :	SQ CAGE IND RUN
Starting Method :	ACROSS THE LINE
Poles :	4
Rotation :	REV
Mounting :	BOLT-ON
Motor Orientation :	HORIZONTAL OR UP OR DOWN
Drive End Bearing :	BALL
Opp Drive End Bearing :	BALL
Frame Material :	ROLLED STEEL
Shaft Type :	STANDARD 56
Overall Length :	14.65 in
Shaft Diameter :	0.63 in
Shaft Extension :	1.88 in
Assembly/Box Mounting :	F1 ONLY
UPC :	722856052032
