JT.50404W01DOE, JT.50504W01DOE, JT.75404W01DOE, JT.75504W01DOE, JT000404W01DOE, JT000504W01DOE, JT001404W01DOE, JT001504W01DOE, JT002404W01DOE, JT002504W01DOE,

JT001504W01DOE, Rolled Steel Jet Pump - J type Premium Efficiency 1.5Hp 1750 Rpm 4P 56J 3Ph 575 V 60 Hz IC411 - TEFC - Footless

E-Motor Nations

$512.58

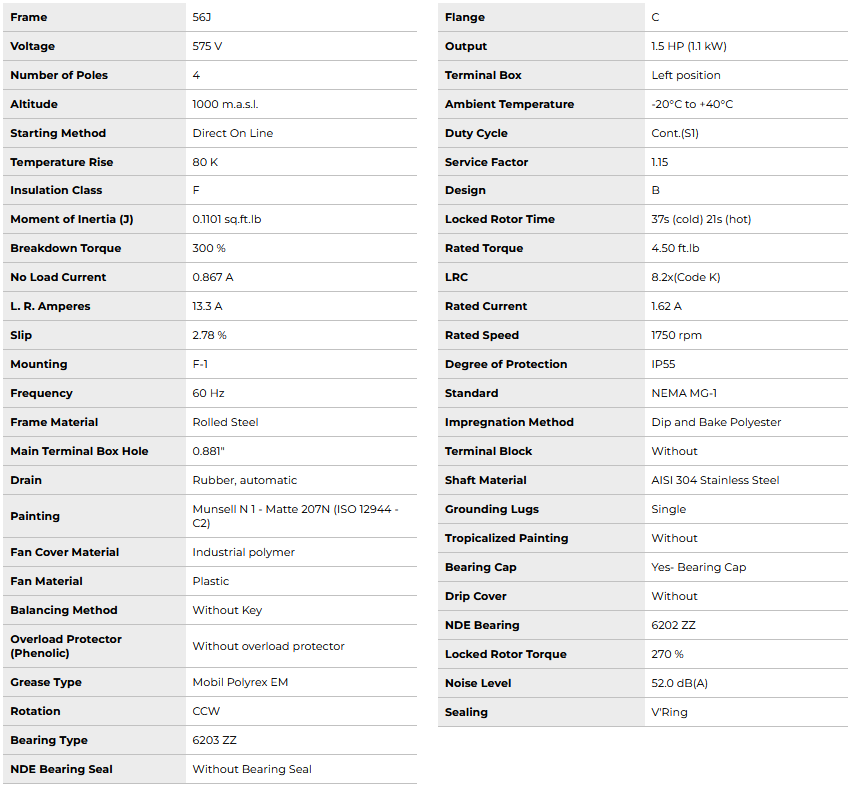

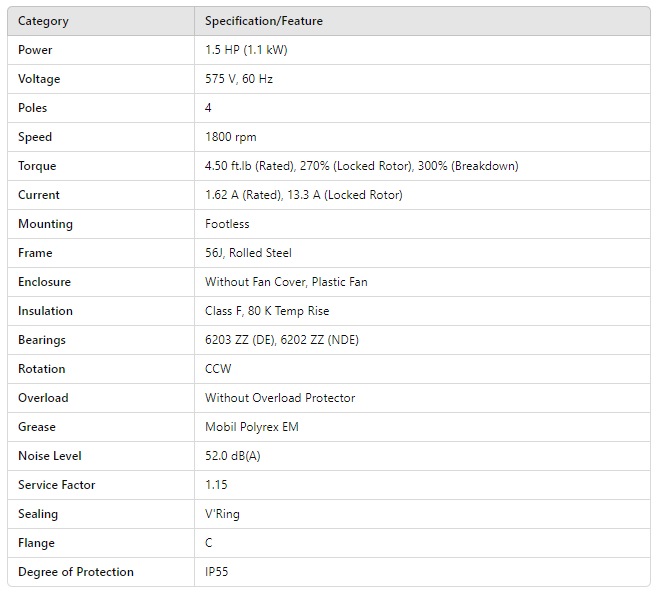

Category	Specification/Feature
Power	1.5 HP (1.1 kW)
Voltage	575 V, 60 Hz
Poles	4
Speed	1800 rpm
Torque	4.50 ft.lb (Rated), 270% (Locked Rotor), 300% (Breakdown)
Current	1.62 A (Rated), 13.3 A (Locked Rotor)
Mounting	Footless
Frame	56J, Rolled Steel
Enclosure	Without Fan Cover, Plastic Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6203 ZZ (DE), 6202 ZZ (NDE)
Rotation	CCW
Overload	Without Overload Protector
Grease	Mobil Polyrex EM
Noise Level	52.0 dB(A)
Service Factor	1.15
Sealing	V'Ring
Flange	C
Degree of Protection	IP55
