JT001502W01DOE, Rolled Steel Jet Pump - J type Premium Efficiency 1.5Hp 3520 Rpm 2P 56J 3Ph 575 V 60 Hz IC411 - TEFC - Footless

E-Motor Nations

$402.69

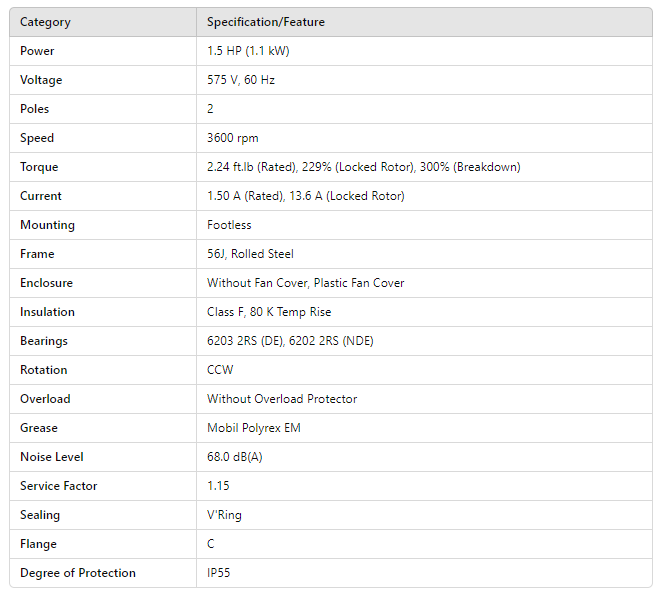

Category	Specification/Feature
Power	1.5 HP (1.1 kW)
Voltage	575 V, 60 Hz
Poles	2
Speed	3600 rpm
Torque	2.24 ft.lb (Rated), 229% (Locked Rotor), 300% (Breakdown)
Current	1.50 A (Rated), 13.6 A (Locked Rotor)
Mounting	Footless
Frame	56J, Rolled Steel
Enclosure	Without Fan Cover, Plastic Fan Cover
Insulation	Class F, 80 K Temp Rise
Bearings	6203 2RS (DE), 6202 2RS (NDE)
Rotation	CCW
Overload	Without Overload Protector
Grease	Mobil Polyrex EM
Noise Level	68.0 dB(A)
Service Factor	1.15
Sealing	V'Ring
Flange	C
Degree of Protection	IP55
