JT.33402W01DOE, JT.33502W01DOE, JT.50402W01DOE, JT.50502W01DOE, JT.75402W01DOE, JT.75502W01DOE, JT000402W01DOE, JT000502W01DOE, JT001402W01DOE, JT001502W01DOE, JT002402W01DOE, JT002502W01DOE, JT003402W01DOE, JT003502W01DOE,KT.33402W01DOE,

JT.75502W01DOE, Rolled Steel Jet Pump - J type Premium Efficiency 0.75Hp 3440 Rpm 2P W56J 3Ph 575 V 60 Hz IC411 - TEFC - Footless

E-Motor Nations

$382.40

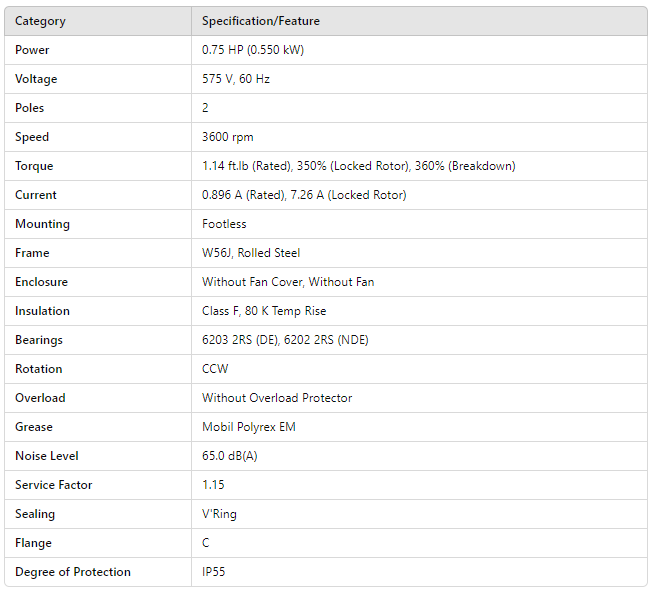

Category	Specification/Feature
Power	0.75 HP (0.550 kW)
Voltage	575 V, 60 Hz
Poles	2
Speed	3600 rpm
Torque	1.14 ft.lb (Rated), 350% (Locked Rotor), 360% (Breakdown)
Current	0.896 A (Rated), 7.26 A (Locked Rotor)
Mounting	Footless
Frame	W56J, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6203 2RS (DE), 6202 2RS (NDE)
Rotation	CCW
Overload	Without Overload Protector
Grease	Mobil Polyrex EM
Noise Level	65.0 dB(A)
Service Factor	1.15
Sealing	V'Ring
Flange	C
Degree of Protection	IP55
