JO000102W01DOE, Rolled Steel Jet Pump - J type 1Hp 3510 Rpm 2P 56J 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless

E-Motor Nations

$363.81

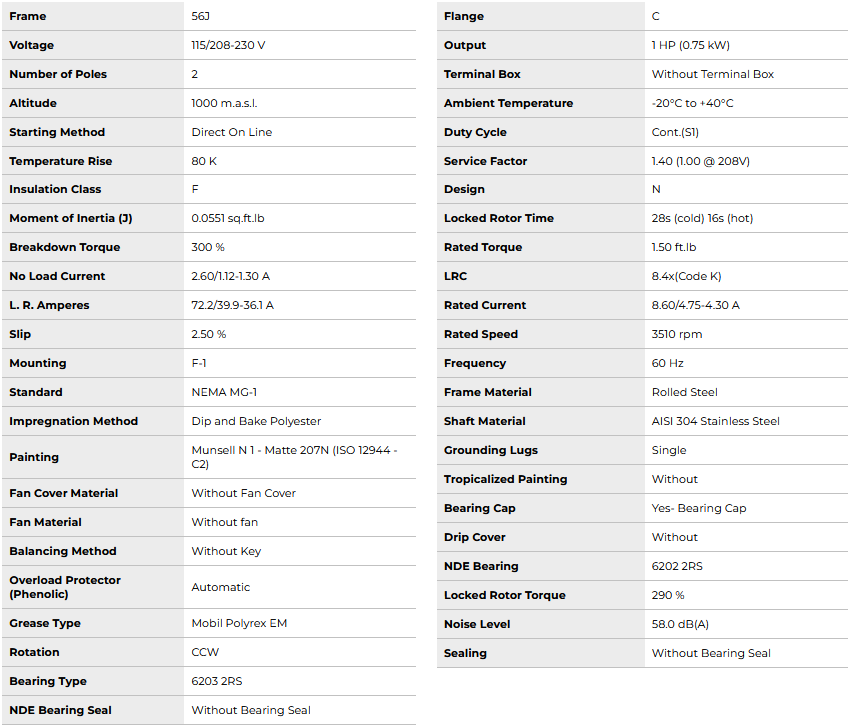

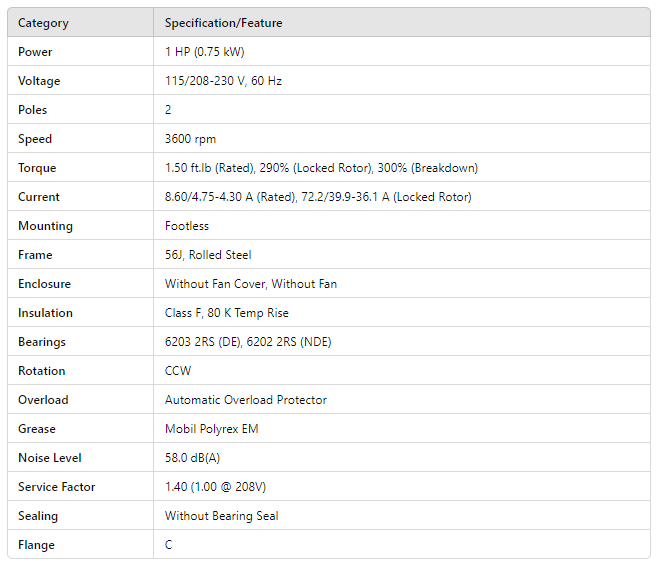

Category	Specification/Feature
Power	1 HP (0.75 kW)
Voltage	115/208-230 V, 60 Hz
Poles	2
Speed	3600 rpm
Torque	1.50 ft.lb (Rated), 290% (Locked Rotor), 300% (Breakdown)
Current	8.60/4.75-4.30 A (Rated), 72.2/39.9-36.1 A (Locked Rotor)
Mounting	Footless
Frame	56J, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6203 2RS (DE), 6202 2RS (NDE)
Rotation	CCW
Overload	Automatic Overload Protector
Grease	Mobil Polyrex EM
Noise Level	58.0 dB(A)
Service Factor	1.40 (1.00 @ 208V)
Sealing	Without Bearing Seal
Flange	C
