JO.33102W01DOE, JO.50102W01DOE, JO.75102W01DOE, JO000102W01DOE, JO001102W01DOE, JO002102W01DOE, JO003102W01DOE, KO.33102W01DOE, KO.50102W01DOE, KO.75102W01DOE, KO002102W01DOE, KO003102W01DOE,

JO.50102W01DOE, Rolled Steel Jet Pump - J type 0.5Hp 3510 Rpm 2P W56J 1Ph 115/208-230 V 60 Hz IC01 - ODP - Footless

E-Motor Nations

$277.58

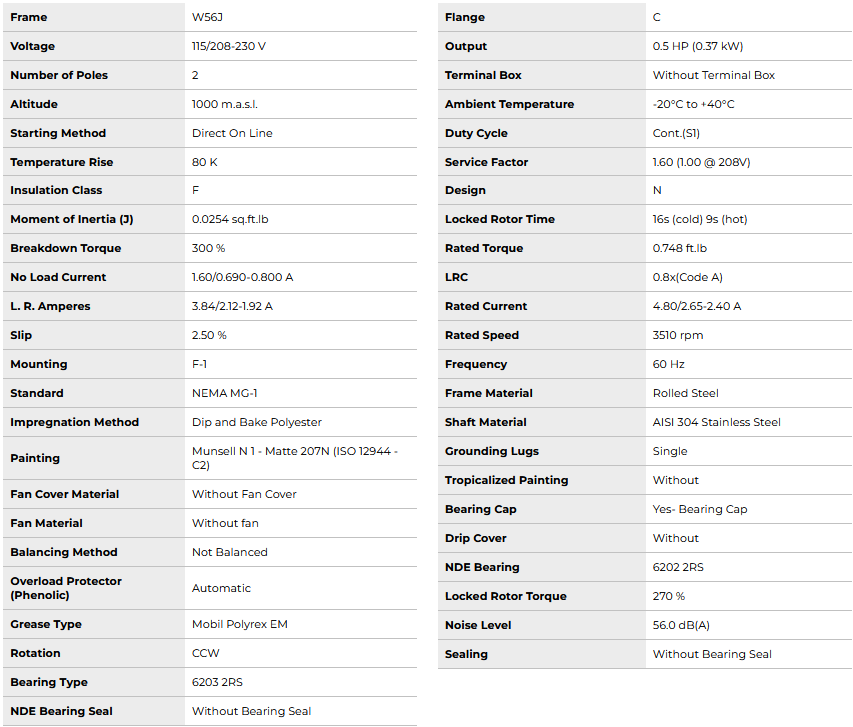

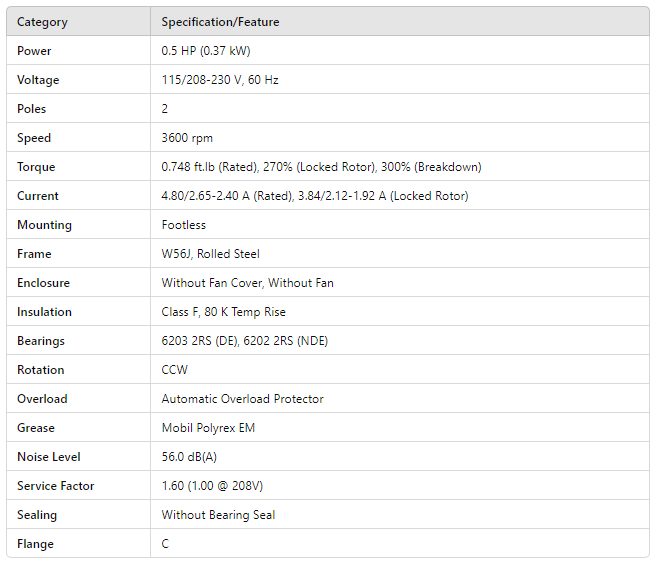

Category	Specification/Feature
Power	0.5 HP (0.37 kW)
Voltage	115/208-230 V, 60 Hz
Poles	2
Speed	3600 rpm
Torque	0.748 ft.lb (Rated), 270% (Locked Rotor), 300% (Breakdown)
Current	4.80/2.65-2.40 A (Rated), 3.84/2.12-1.92 A (Locked Rotor)
Mounting	Footless
Frame	W56J, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6203 2RS (DE), 6202 2RS (NDE)
Rotation	CCW
Overload	Automatic Overload Protector
Grease	Mobil Polyrex EM
Noise Level	56.0 dB(A)
Service Factor	1.60 (1.00 @ 208V)
Sealing	Without Bearing Seal
Flange	C
