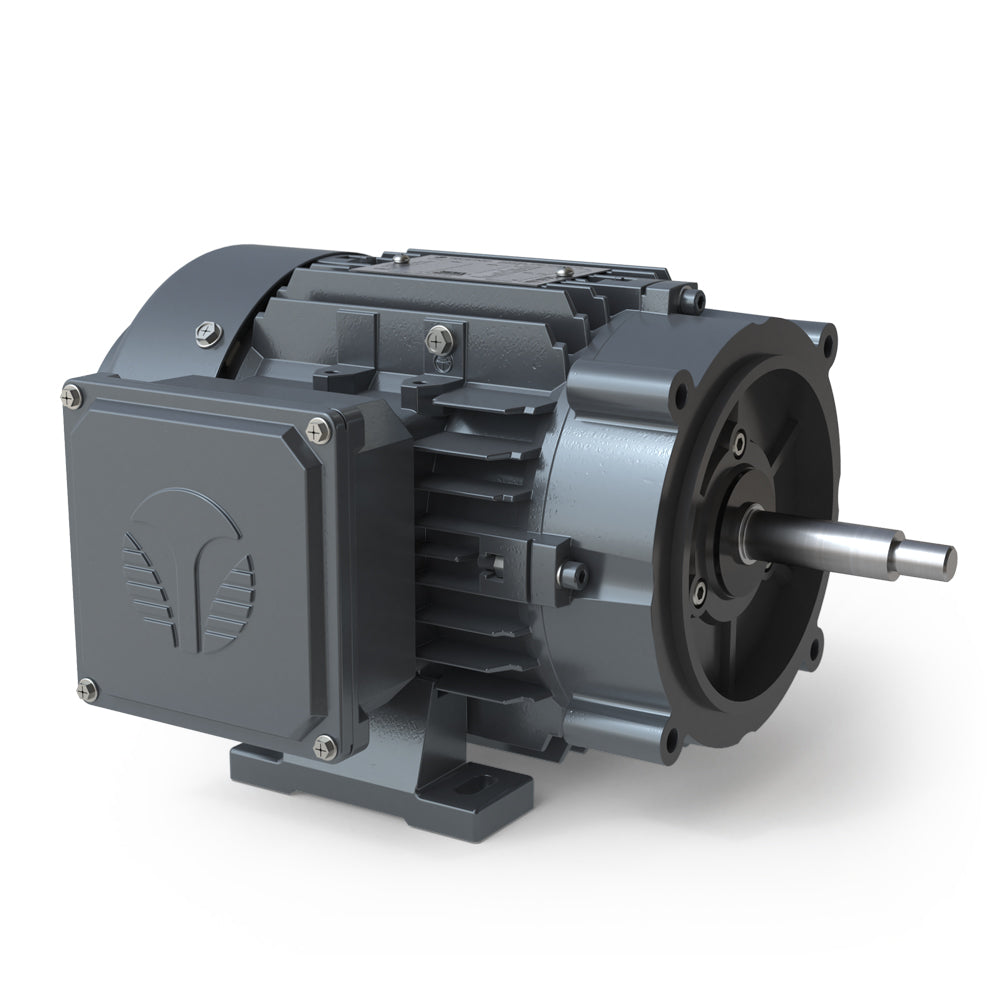

JEP0022DP,Techtop, 2 Hp, 3500 RPM, 230/460V,Fr:56J,Jet Pump,3 Ph,TEFC,
JEP0022DP, Techtop, GR3-AL-TF-56J-3D,
- Horse Power 2,
- RPM 3500,
- Voltage 230/460
- Full Load Amps 5.5-5.24/2.62
- Service Factor 1.25,
- Nominal Efficiency 85.5,
- Nominal Power Factor 0.84,
- Frame 56J,
- Enclosure Type TEFC,
- IP Rating IP55,
- Drive End Bearing 6204 2RS,
- Opposite Drive End Bearing 6204 2RS,
- Weight (lbs) 26,
Motor Features
STANDARD FEATURES
- Removable feet F1, F2, F0 field convertible
- 1.25 Service Factor with 60Hz operation / 1.0 Service Factor with 50Hz operation
- 36 Month warranty
- Conduit Box is 90º rotatable
- Cast aluminum construction with cast aluminum c-flanges
- Class I, Division II, Groups A, B, C and D compliant
- Anti-microbial (tropicalization) on stator winding
- Compact lightweight design
- Dual oversized shielded bearings
- AISI 304 grade stainless steel threaded shaft
- Surface finish:
- Alkyd enamel RAL7024 - Graphite Gray
- Black oxide surface treatment for increased corrosion resistance
- Stainless steel nameplate
- Corrosion resistant hardware
OPERATING PARAMETERS
- Continuous (S1) duty
- Ambient temperatures up to 40ºC
- Installation up to 1000 MASL (3300 ft.)
CONNECTION
- 9-Lead 230V parallel-wye / 460V series-wye connection
- 3-Lead 575V wye connection
INGRESS PROTECTION
The standard degree of enclosure protection is IP55 (increased IP protection is available). Both drive end and non-drive end are fitted with double lip oil seals, including a rubber shaft slinger on the drive end. Terminal box is double gasketed. DE and NDE end bell fitted with sintered brass one-way drain.
INSULATION AND INVERTER RATING
- Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H)
- Designed to Class B temperature rise
- Vacuum Impregnated
- Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power)
- Exceeds NEMA MG 1 Part 31.4.4.2
