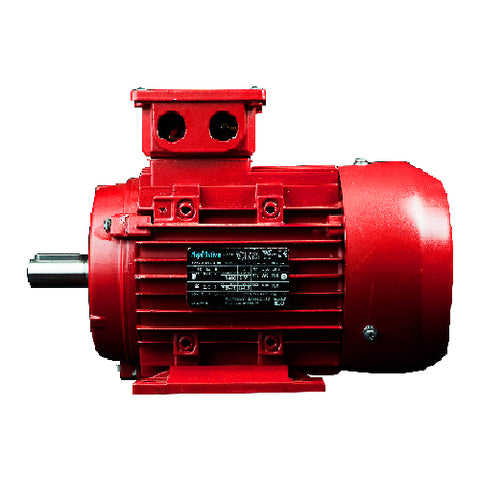

IJA132S2-2-59, 10 HP, 3600 RPM, 575V, FRAME 132S, TEFC, MAXMOTION

MAXMOTION

$1,619.61

METRIC IEC ALUMINUM & CAST IRON CONSTRUCTION

TEFC TOTALLY ENCLOSED FAN COOLED IE1, and IE3 EFFICIENCIES

FEATURES:

IP55 weather protection
Class H Insulation, with B Temp Rise
Inverter Duty Magnet Wire,

meets MG1 Part 31 10:1 CT, 20:1 VT
SKF High Temp bearings
56-112 Frames come with

Seal/lubricated Bearings,
132 and larger are re-greasable
Aluminum Construction 56-160 frame, Cast Iron 180-500 frame
Rotatable/Removable Base 63-160 Frame, Rigid Base 180 larger
PTC installed on frames 132 and larger
IEC Design N, with NEMA B Torques

Terminal Blocks, Stud

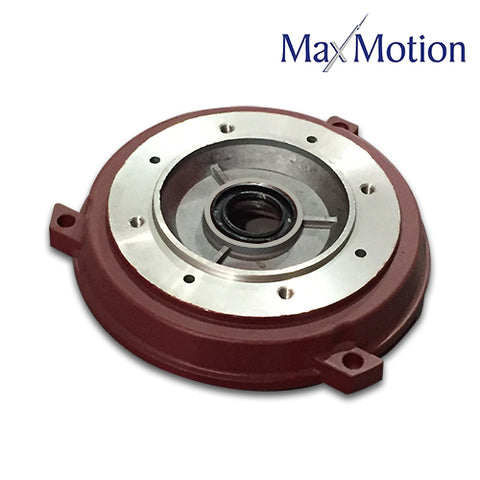

B14 and B5 Flanges are available
MAX MOTION ELECTRIC MOTOR

HP	10
CAT. #	IJA132S2-2-59
RPM	3600
VOLTAGE	575
FRAME	132
TORQUE (IN.LBS.)
WGT. LBS.	152.5168
“L” DIM.	440
KW	7.5
EFF	IE3

IJA
