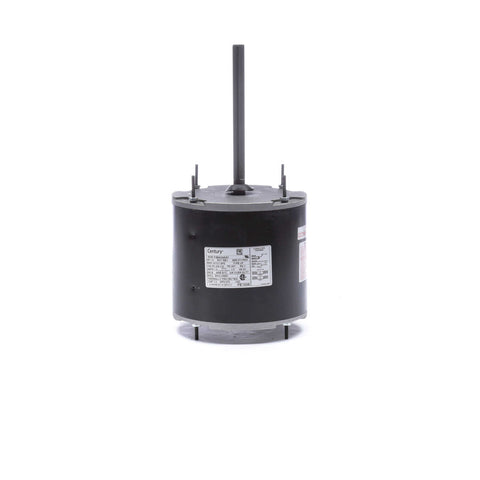

FE1036, Century, 1/3 HP, 1075 RPM, 208-230V, 7126-1076, Fasco, TENV, FR:48

CENTURY

$343.60

FE1036, Century, Ao Smith, EM3729, 7126-1076, Fasco, U26B1, CPN 121133

Nameplate Specifications

Output HP :	1/3 HP	Output KW :	0.25 kW
Frequency :	60 Hz	Voltage :	208-230 V
Current :	1.8 A	Speed :	1075 RPM
Service Factor :	1	Phase :	1
Duty :	Air Over	Insulation Class :	B
Frame :	48Y	Enclosure :	Totally Enclosed
Overload Protector :	Automatic	Ambient Temperature :	60 °C
UL :	Recognized	CSA :	Y
CE :	N

Technical Specifications

Electrical Type :	Permanent Split Capacitor	Starting Method :	Induction Run
Poles :	6	Rotation :	Reversible
Mounting :	Extended Studs	Motor Orientation :	Vertical Shaft Up Or Down
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Rolled Steel	Shaft Type :	Double Flat
Overall Length :	11.67 in	Frame Length :	4.50 in
Shaft Diameter :	0.500 in	Shaft Extension :	6.0 FLAT in
UPC :	786674020772	Weight :	16.00 LB
