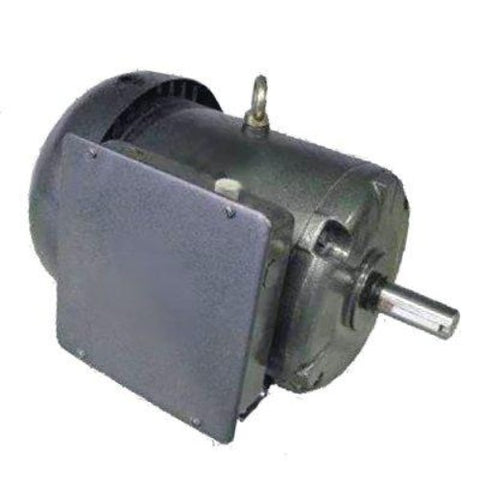

FD17A, OMNIDRIVE MOTOR, 10 HP, 1800 RPM, 208-230V, FRAME 215T, TEFC

OMNIDRIVE

$1,484.87

FD17A, OMNIDRIVE MOTOR

FD17A, OMNIDRIVE MOTOR, REPLACE Z116, 215TBFW7044, US MOTORS FD10CM2K21, F854, BALDOR FDL3737TM, 37N370T913G1, CENTURY K311M2, K312M2, FDU10CM2K21, BG46, LEESON 140706.00, P215K17FB16B

HP	10
VOLTAGE	208-230
AMPS	42-38.10
RPM	1725
FREQUENCY	60 HZ
LENGTH	20-5/16”
ENCLOSURE	TEFC
SHAFT DIAMETER	1-3/8''
TYPE	HIGH TORQUE FARM DUTY
SPEED	1
TYPE	CAPACITOR START/RUN
FRAME	215T
BEARING SLEEVE	BEARING
ROTATION	REVERSIBLE
PROTECTOR	MANUEL OVERLOAD
PHASE	1
AMBIENT TEMP	40 C
S.F	1.15
FEATURE(S)	Rolled Steel Construction, Class ‘B’ Insulation, Continuous Duty, UL Listed & CSA Approved, Removable Rigid Base, FD17A
