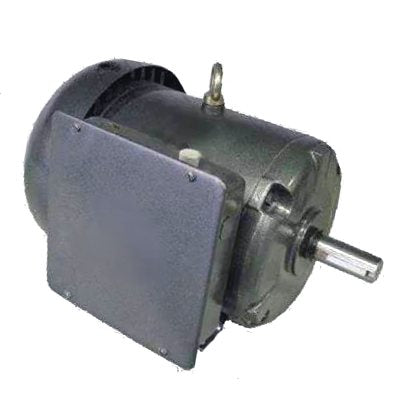

FD12A, OMNIDRIVE MOTOR, 10 HP, 3600 RPM, 208-230V, 1PH,FRAME 215T, TEFC

OMNIDRIVE

$1,504.34

FD12A OMNIDRIVE MOTOR,

REPLACE LEESON 140685.00, C215K34FB1, LM24721, SSF2S10T1B6008, 140695.00, C215K34FK1, L3711T, 37M230W578 , CL3711T, 37F395W578, OMNI DRIVE

Horsepower :10
Voltage :208-230
Amps :43-39
RPM :3600
Frequency :60 Hz
"C" Dim. :20-5/16”
Enclosure :Totaly Enclosed Fan Cooled
Type :Capacitor Start/Run
Frame :215T
Bearings :Ball
Rotation :Reversible
Protector :No Overload
Service Factor :1.15
Ambient Temp. :40°C
Feature(s) :Rolled Steel Construction, Rigid Base, Dual Mounting Holes, Class ‘F’ Insulation, Continuous Duty, UL Listed & CSA Approved, ‘C’ Face Kits available
Weight (lbs.) :158
