FD.33104W01C, Rolled Steel 0.33Hp 4P W56C 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

E-Motor Nations

$365.50

FD.33104W01C, Rolled Steel 0.33 Hp 4P W56C 1Ph 115/230 V 60 Hz IC411 - TEFC - Foot-mounted

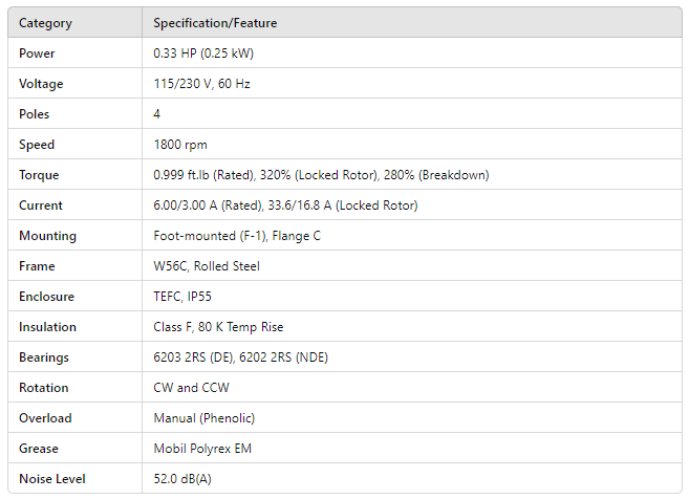

Category	Specification/Feature
Power	0.33 HP (0.25 kW)
Voltage	115/230 V, 60 Hz
Poles	4
Speed	1800 rpm
Torque	0.999 ft.lb (Rated), 320% (Locked Rotor), 280% (Breakdown)
Current	6.00/3.00 A (Rated), 33.6/16.8 A (Locked Rotor)
Mounting	Foot-mounted (F-1), Flange C
Frame	W56C, Rolled Steel
Enclosure	TEFC, IP55
Insulation	Class F, 80 K Temp Rise
Bearings	6203 2RS (DE), 6202 2RS (NDE)
Rotation	CW and CCW
Overload	Manual (Phenolic)
Grease	Mobil Polyrex EM
Noise Level	52.0 dB(A)
