EZXDB7526A1, Dynamic Braking Module Complete With Resistors For 10Hp 480-600V

E-Motor Nations

$1.00

EZXDB7526A1, Dynamic Braking Module Complete With Resistors For 10hp 480-600v

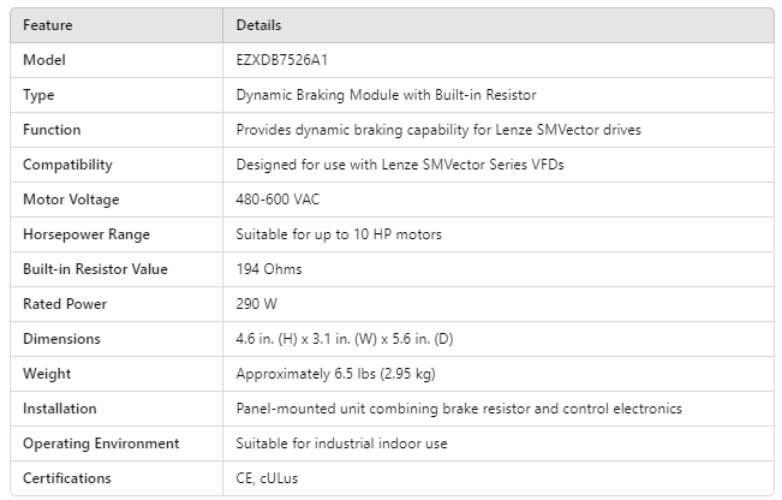

Feature	Details
Model	EZXDB7526A1
Type	Dynamic Braking Module with Built-in Resistor
Function	Provides dynamic braking capability for Lenze SMVector drives
Compatibility	Designed for use with Lenze SMVector Series VFDs
Motor Voltage	480-600 VAC
Horsepower Range	Suitable for up to 10 HP motors
Built-in Resistor Value	194 Ohms
Rated Power	290 W
Dimensions	4.6 in. (H) x 3.1 in. (W) x 5.6 in. (D)
Weight	Approximately 6.5 lbs (2.95 kg)
Installation	Panel-mounted unit combining brake resistor and control electronics
Operating Environment	Suitable for industrial indoor use
Certifications	CE, cULus
