DP000404NPW01, Rolled Steel NEMA Premium Efficiency 1Hp 4P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

E-Motor Nations

$409.45

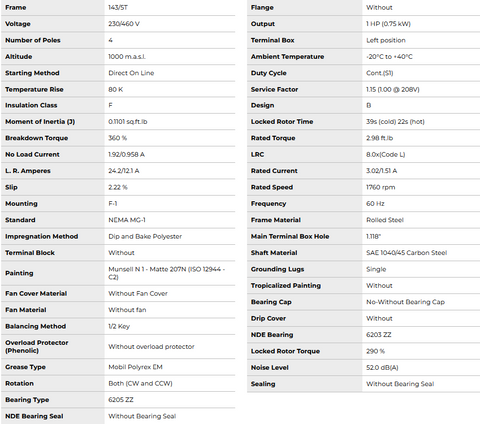

Category	Specification/Feature
Power	1 HP (0.75 kW)
Voltage	230/460 V, 60 Hz
Poles	4
Speed	1800 rpm
Torque	2.98 ft.lb (Rated), 290% (Locked Rotor), 360% (Breakdown)
Current	3.02/1.51 A (Rated), 24.2/12.1 A (Locked Rotor)
Mounting	Foot-mounted (F-1)
Frame	143/5T, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6205 ZZ (DE), 6203 ZZ (NDE)
Rotation	CW and CCW
Overload	Without overload protector
Grease	Mobil Polyrex EM
Noise Level	52.0 dB(A)
Service Factor	1.15 (1.00 @ 208V)
Sealing	Without Bearing Seal
Flange	Without Flange
Terminal Box	Left position
Main Terminal Box Hole	1.118"
Locked Rotor Time	39s (cold) 22s (hot)
Tropicalized Painting	Without
