D1CPA2PH9,Us Motors,1Hp,1725 Rpm,115/208-230V,Fr:56H,T063CKP2137012B,

E-Motor Nations

$477.17

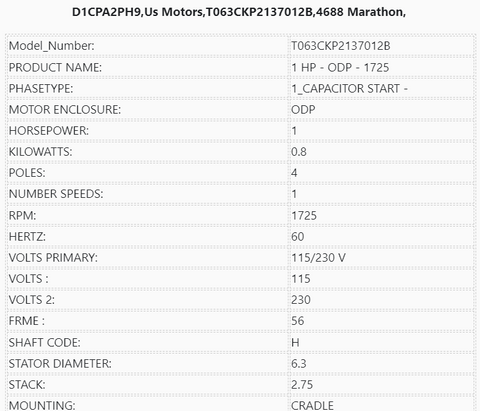

D1CPA2PH9,Us Motors,T063CKP2137012B,4688 Marathon,

Model_Number:	T063CKP2137012B
PRODUCT NAME:	1 HP - ODP - 1725
PHASETYPE:	1_CAPACITOR START -
MOTOR ENCLOSURE:	ODP
HORSEPOWER:	1
KILOWATTS:	0.8
POLES:	4
NUMBER SPEEDS:	1
RPM:	1725
HERTZ:	60
VOLTS PRIMARY:	115/230 V
VOLTS :	115
VOLTS 2:	230
FRME :	56
SHAFT CODE:	H
STATOR DIAMETER:	6.3
STACK:	2.75
MOUNTING:	CRADLE
MOTOR TYPE:	FHP
OPPOSITE END BEARING:	6203
SHAFT END BEARING:	6203
AMBIENT:	40
ROTATION:	CW/CCW
SERVICE FACTOR:	1.15
RUNCAPMFD:	70
RUNCAPVOLTS:	280
STARTCAPMFD:	709
SHIPPING WEIGHT:	31
THERMAL PROTECTION:	AUTOMATIC RESET
BREAKDOWN TORQUE:	117.7
BREAKDOWN TORQUE UOM:	OZFT
LOCKED ROTOR TORQUE:	217.4
LOCKED ROTOR TORQUE UOM:	OZFT
INSULATION CLASS:	B
KVA CODE LETTER:	J
LOCKED ROTOR AMPS:	67.56
NEMA NOMINAL EFFICIENCY:	82.6
FULL LOAD AMPS PRIMARY:	8.8/4.4
SERVICE FACTOR AMPS PRIMARY:	9.2/4.6
