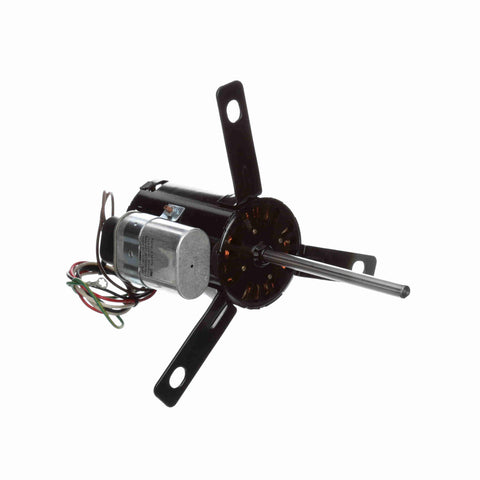

D0346, Fasco, 56346-0, 1/4 Hp,1550 RPM, 115 Volts, 7190-2904,JE2K007N,
D0346 Fasco, 56346, 56346-0 PENN Barry, VENTILATOR,
Suggested replacement reference for: Penn Vent 56346-0, 7190-2904, 71902904, JE2K007N, JE2K007. Zephyr Z10S/H. Fits Dayton 2D071, Replaced by D0346, fASCO,
Nameplate Specifications
Phase: | 1 | Output HP: | 1/4 Hp |
Output KW: | 0.19 kW | Voltage: | 115 V |
Speed: | 1550 rpm | Service Factor: | 1 |
Frame: | 3.3 | Enclosure: | Open Air Over |
Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
Frequency: | 60 Hz | Current: | 2.90 A |
Duty: | Air Over | Insulation Class: | B |
UL: | Recognized | CSA: | N |
CE: | N | Number of Speeds: | 2 |
Technical Specifications
Electrical Type: | Permanent Split Capacitor | Starting Method: | Across The Line |
Poles: | 4 | Rotation: | Clockwise Shaft End |
Mounting: | Lug | Drive End Bearing: | Sleeve |
Opp Drive End Bearing: | Sleeve | Frame Material: | Steel |
Shaft Type: | Flat | Overall Length: | 10.12 in |
Frame Length: | 4.68 in | Shaft Diameter: | 0.375 in |
Shaft Extension: | 5.44 in |
General Specifications
UPC: | 815585027294 | Weight: | 8.05 LB |
Packaged Length: | 12.00 IN | Packaged Width: | 10.38 IN |
Packaged Height: | 12.50 IN | Country of Origin: | Mexico |
