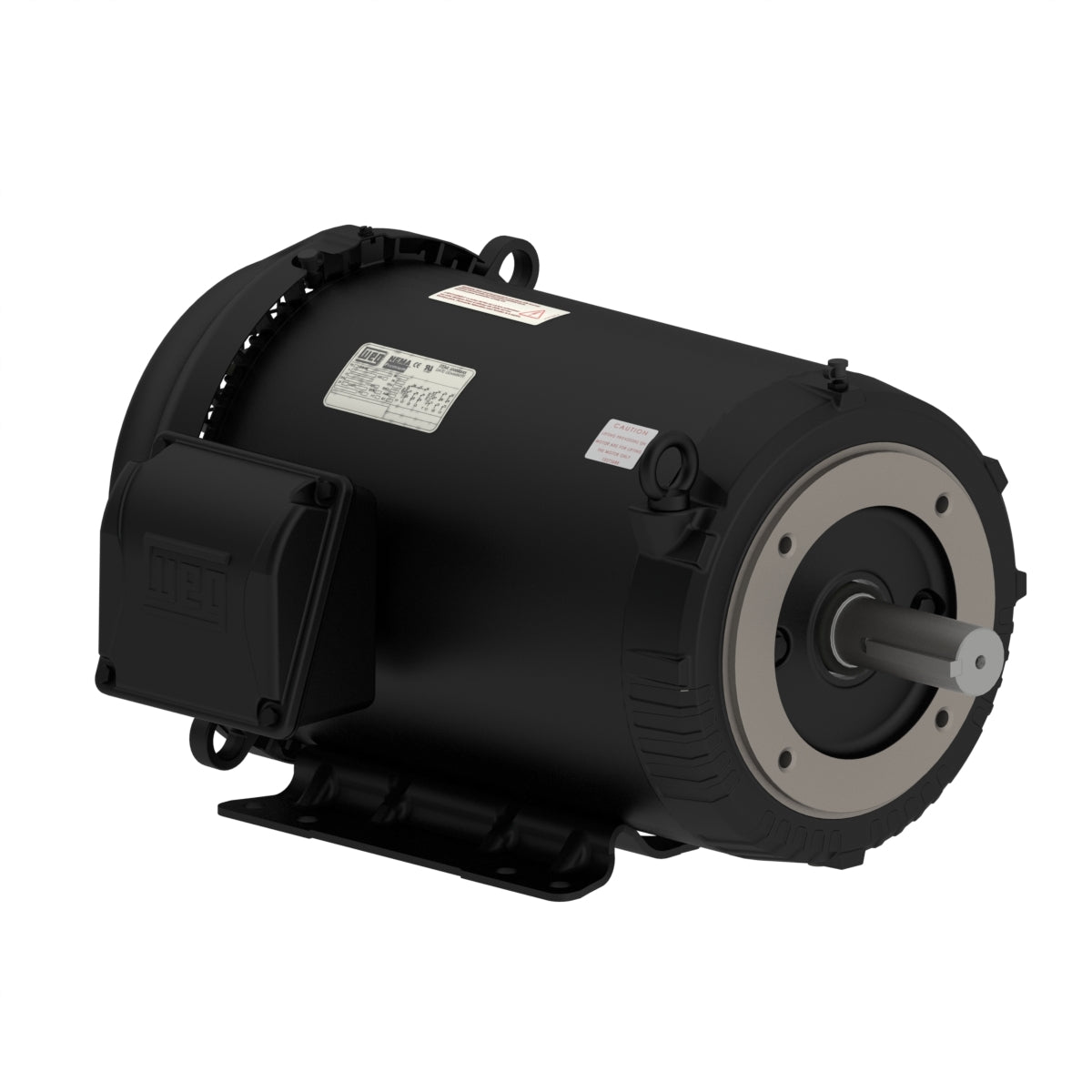

CT005404NPW01,Weg, Replace Baldor CEM3615T, CEM3615T-G, EM3615T,Spec 36A002Q032G1,36G271Q032G1, 36-0000-0252,
Electric Motors
| Frame |
182/4TC |
| Output |
5 HP (3.7 kW) |
| Number of Poles |
4 |
| Frequency |
60 Hz |
| Rated speed |
1750 rpm |
| Slip |
2.78 % |
| Rated voltage |
230/460 V |
| Rated current |
13.0/6.49 A |
| L. R. Amperes |
90.9/45.4 A |
| LRC |
7.0x(Code J) |
| No load current |
6.89/3.44 A |
| Rated torque |
15.0 ft.lb |
| Locked rotor torque |
220 % |
| Breakdown torque |
300 % |
| Locked rotor time |
28s (cold) 16s (hot) |
| Moment of inertia (J) |
0.3080 sq.ft.lb |
| Design |
B |
| Insulation Class |
F |
| Service factor |
1.15 |
| Temperature rise |
80 K |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +40°C |
| Altitude |
1000 m.a.s.l. |
| Degree of Protection |
IP55 |
| Enclosure |
IC411 - TEFC |
| Mounting |
F-1 |
| Rotation¹ |
Both (CW and CCW) |
| Noise level² |
56.0 dB(A) |
| Approx. weight³ |
85.9 lb |
