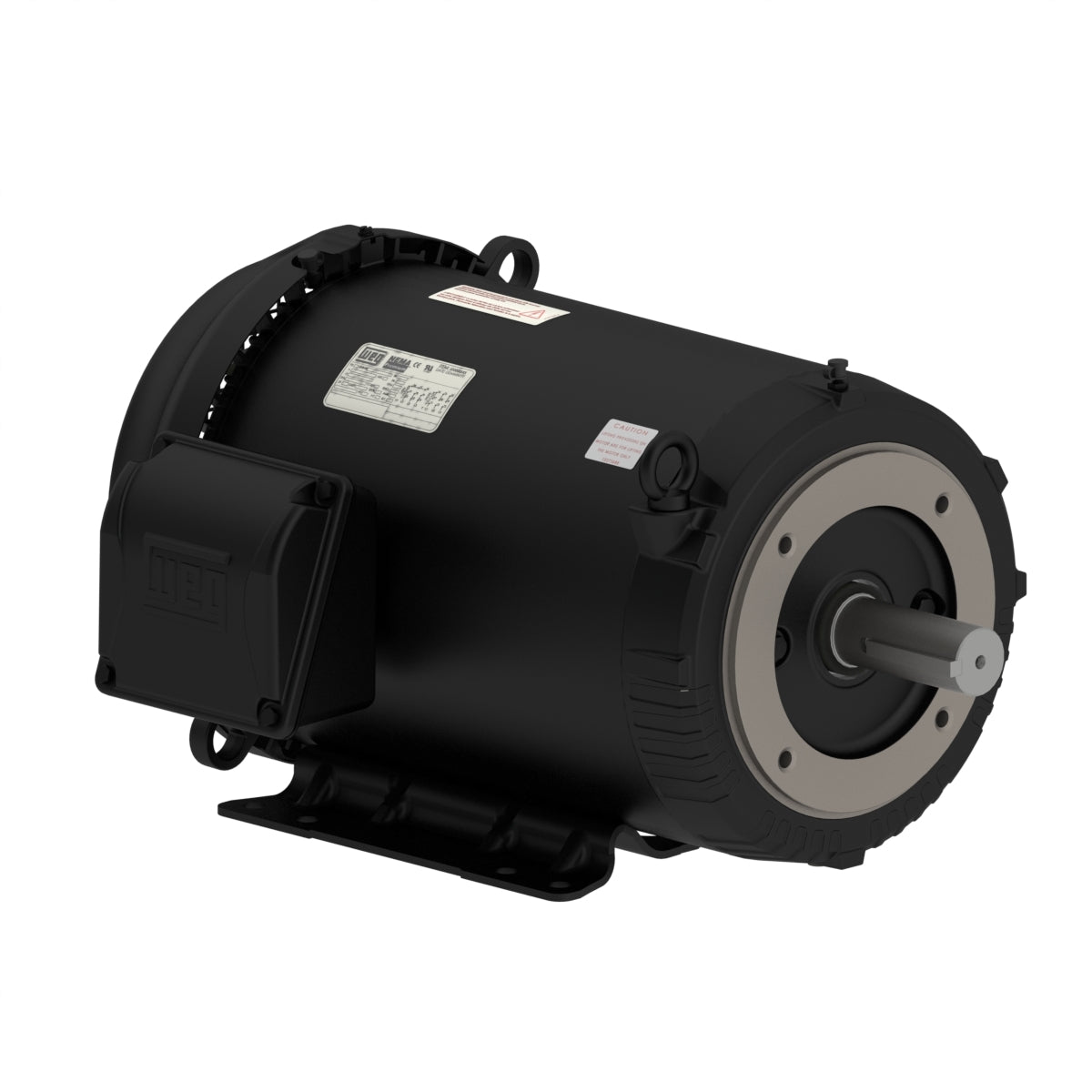

CT003502NPW01 Weg, 3 Hp, 3515 Rpm, 575 Volts, Fr: 182/4TC, W01, Tefc,
CT003502NPW01 Weg, CT003502NPW22, Replace Westinghouse RF00325, PDH00325, APH00325,MaxMotion, MPP-16, MPC-16, MPC-16W, Nidec ELP3P1G, CD3P1G,U3P1G,BALDOR CEM3610T-5, EM3610T-5, 35L113M839G1, 35L100M839G1,
Electric Motors
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3515 rpm |
| Slip | 2.36 % |
| Rated voltage | 575 V |
| Rated current | 2.94 A |
| L. R. Amperes | 25.8 A |
| LRC | 8.8x(Code K) |
| No load current | 1.29 A |
| Rated torque | 4.42 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 300 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 0.1564 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 76.1 lb |
Description
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and Premium efficiency, these versatile motors provide torque and durability for the severest applications.
Feature
- Motors are compliant with DOE and NRCAN
- Three-phase, 2, 4 and 6 poles, 60HZ, Service Factor 1.15
- Voltage:230/460V, 575V
- Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine"
- Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
- NEMA design “A”
- Continuous Duty (S1)
- 104°F (40°C) ambient temperature
- Double Gasketed terminal box
Emotornations inventory of general purpose electric motors are for use in various applications across numerous industries. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.
