CP001502NPW01, CP001504NPW01, CP002504NPW01, CP003502NPW01, CP005502NPW01,

CP003502NPW01, Rolled Steel NEMA Premium Efficiency 3Hp 2P 143/5TC 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

E-Motor Nations

$580.20

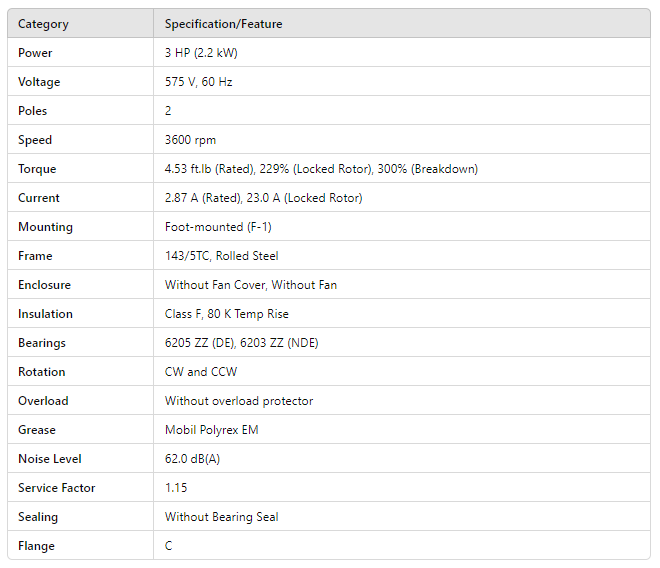

Category	Specification/Feature
Power	3 HP (2.2 kW)
Voltage	575 V, 60 Hz
Poles	2
Speed	3600 rpm
Torque	4.53 ft.lb (Rated), 229% (Locked Rotor), 300% (Breakdown)
Current	2.87 A (Rated), 23.0 A (Locked Rotor)
Mounting	Foot-mounted (F-1)
Frame	143/5TC, Rolled Steel
Enclosure	Without Fan Cover, Without Fan
Insulation	Class F, 80 K Temp Rise
Bearings	6205 ZZ (DE), 6203 ZZ (NDE)
Rotation	CW and CCW
Overload	Without overload protector
Grease	Mobil Polyrex EM
Noise Level	62.0 dB(A)
Service Factor	1.15
Sealing	Without Bearing Seal
Flange	C
