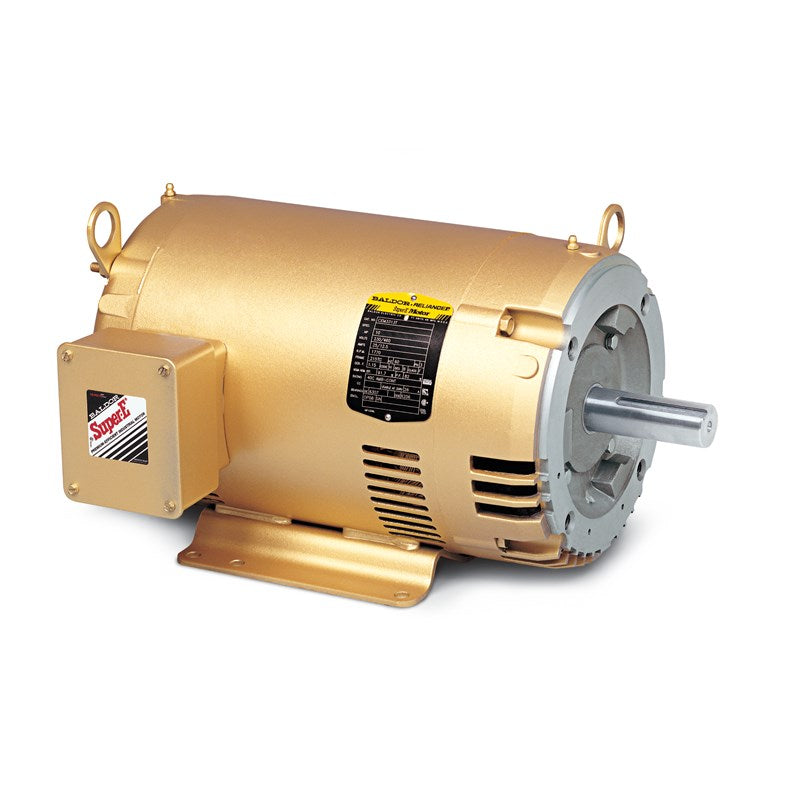

CEM3313T, 10 HP,1770 Rpm,230/460V,37B102T853G1, Fr: 215TC,OPSB,3 Ph,

E-Motor Nations

$1,625.00

CEM3313T, Baldor, Spec 37F614L868, 37B102T853G1, Replace MaxMotion MQOP-32, MLR-32,

CAT.NO.	CEM3313T
SPEC.	37B102T853G1, 37F614L868
HP	10
VOLTS	230/460
AMPS	25/12.5
RPM	1770
FRAME	215TC				HZ		60					PH		3
SF	1.15		CODE			H	DES		B	CLASS			F
NEMA NOM. EFF	91.7			PF		82
RATING	40C AMB-CONT
CC	010A			USABLE AT 208V							26.4
DE	6307				ODE			6206
ENCL	OPSB	SN
VPWM INVERTER READY
CT30-60(2:1) VT3-60(20:1)
USABLE AT	50HZ 7.5HP 190/380V 23.4/11.7A														SF1.0

General Characteristics

Full Load Torque 0 LB-FT
No-Load Current 0 A
Line-Line Res. @ 25° C1.18 Ohms A Ph / 0 Ohms B Ph
Temp. Rise @ Rated Load 35° C
Temp. Rise @ S.F. Load 44° C
Start Configuration DOL
Break-Down Torque 101 LB-FT
Pull-Up Torque 44.9 LB-FT
Locked-Rotor Torque 56 LB-FT
Starting Current 88.6 A

Load Characteristics

Rated Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power Factor	6.0	45.0	67.0	77.0	82.0	84.0	85.0	84.0
Efficiency	0.0	86.7	91.3	92.1	91.7	90.9	89.6	91.1
Speed (RPM)	1,799	1,792	1,785	1,777	1,769	1,760	1,750	1,762
Line Amps	5.31	6.04	7.69	9.84	12.40	15.30	18.40	14.10
