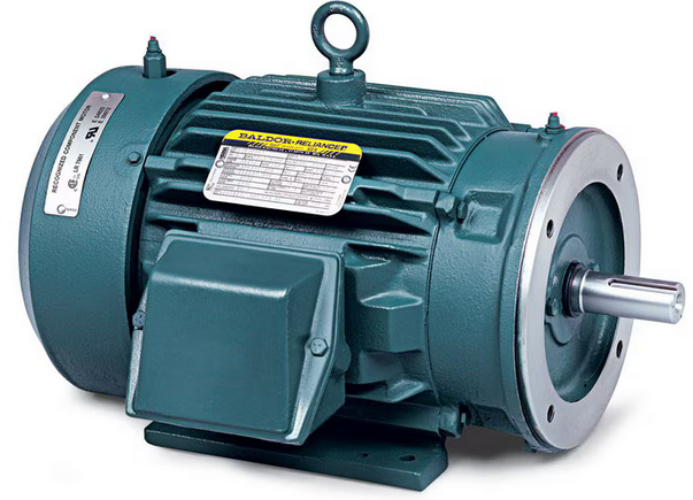

CECP3581T-5, 1Hp, 1770RPM, 3PH, 60HZ, 143TC, 575V, TEFC, F1

E-Motor Nations

$1,202.34

CECP3581T-5, 1Hp, 1770RPM, 3PH, 60HZ, 143TC, 575V, TEFC, F1

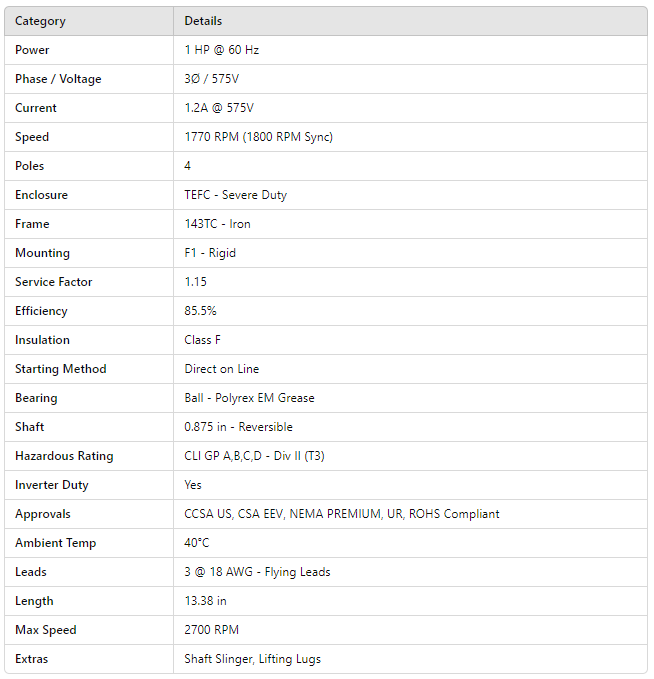

Category	Details
Power	1 HP @ 60 Hz
Phase / Voltage	3Ø / 575V
Current	1.2A @ 575V
Speed	1770 RPM (1800 RPM Sync)
Poles	4
Enclosure	TEFC - Severe Duty
Frame	143TC - Iron
Mounting	F1 - Rigid
Service Factor	1.15
Efficiency	85.5%
Insulation	Class F
Starting Method	Direct on Line
Bearing	Ball - Polyrex EM Grease
Shaft	0.875 in - Reversible
Hazardous Rating	CLI GP A,B,C,D - Div II (T3)
Inverter Duty	Yes
Approvals	CCSA US, CSA EEV, NEMA PREMIUM, UR, ROHS Compliant
Ambient Temp	40°C
Leads	3 @ 18 AWG - Flying Leads
Length	13.38 in
Max Speed	2700 RPM
Extras	Shaft Slinger, Lifting Lugs
