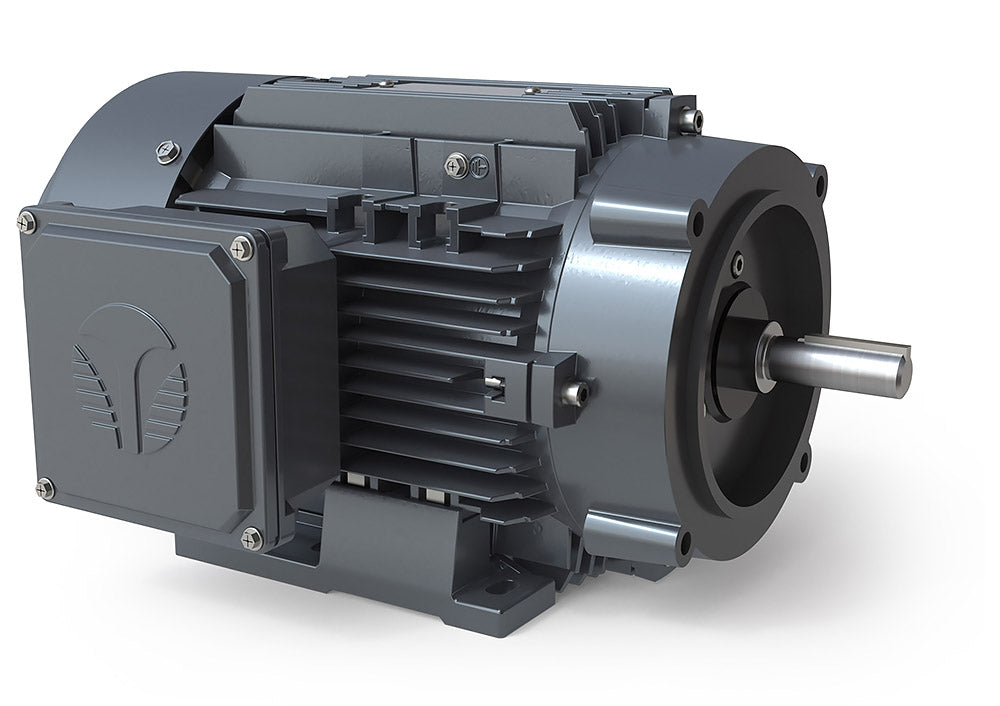

BLA0052DP-C, 5 Hp, 3500 Rpm, 208-230/460V, Frame: 56HC, Tefc, Premium

BLA0052DP-C, Techtop,

• 5 HP
• 3500 Rpm @ 60HZ,
• 2860 Rpm @ 50HZ
• Rated Motor Voltage (+/-10%) 208-230/460 V/60Hz
• Rated Motor Voltage (+/-10%) 190/380 V/50Hz
• Rated Motor Current 13.0-12.1/6.05
• SF 1.25
• Enclosure TEFC
• Bearing DE Side 6205ZZ

  Bearing ODE Side 6205ZZ
  Grease Type Mobil Polyrex EM

  STANDARD FEATURES

  • Removable feet F1, F2, F0 field convertible
  • 1.25 Service Factor with 60Hz operation / 1.0 Service Factor with 50Hz operation
  • 36 Month warranty
  • Conduit Box is 90º rotatable
  • Cast aluminum construction with cast aluminum c-flanges
  • Class I, Division II, Groups A, B, C and D compliant
  • Anti-microbial (tropicalization) on stator winding
  • Compact lightweight design
  • Dual oversized shielded bearings
  • 1045 Steel shaft
  • Surface finish:
    • Alkyd enamel RAL7024 - Graphite Gray
    • Black oxide surface treatment for increased corrosion resistance
  • Stainless steel nameplate
  • Corrosion resistant hardware

  OPERATING PARAMETERS

  • Continuous (S1) duty
  • Ambient temperatures up to 40ºC
  • Installation up to 1000 MASL (3300 ft.)


  CONNECTION

  • 9-Lead 230V parallel-wye / 460V series-wye connection
  • 3-Lead 575V wye connection


  INGRESS PROTECTION

  The standard degree of enclosure protection is IP55 (increased IP protection is available). Both drive end and non-drive end are fitted with double lip oil seals, including a rubber shaft slinger on the drive end. Terminal box is double gasketed. DE and NDE end bell fitted with sintered brass one-way drain.


  INSULATION AND INVERTER RATING

  • Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H)
  • Designed to Class B temperature rise
  • Vacuum Impregnated
  • Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power).
  • Exceeds NEMA MG 1 Part 31.4.4.2
