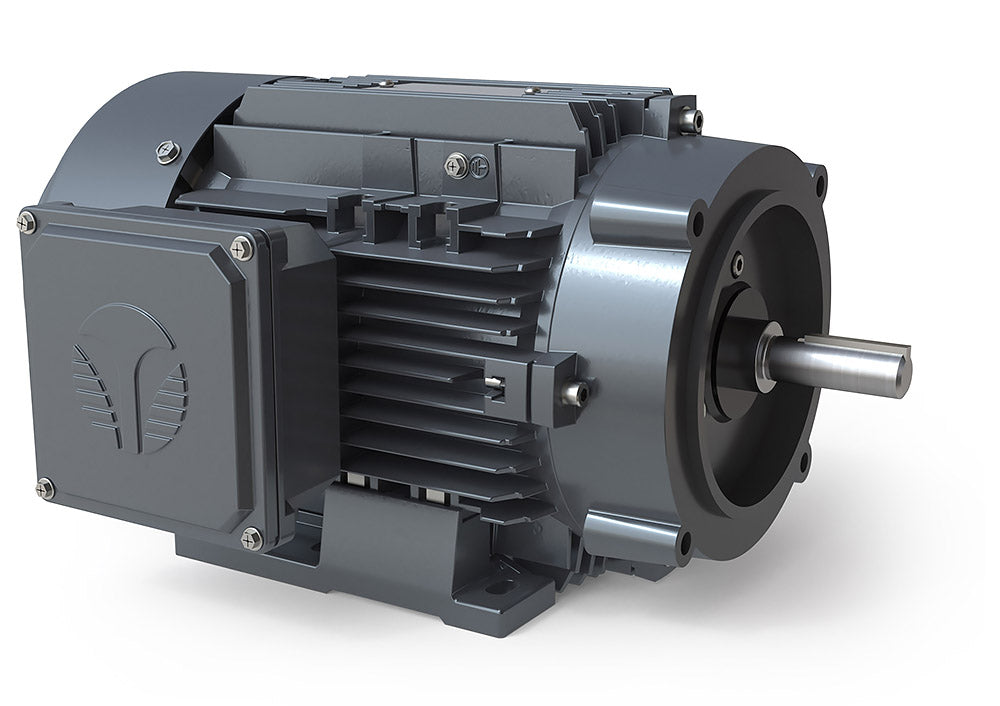

BLA0014DP-C, Techtop, 1.5 Hp, 1800 RPM, 208-230/460V, Fr:56C, Premium,

BLA0014FP-C, Techtop, 1.5 Hp, 1800 RPM, 575 Volts, Fr:56HC,Premium,

TECHTOP

$549.15

BLA0014FP-C, Techtop, Replaced Maxmotion MPR-154CW, MPRP-154CW, K722 MARATHON, MODEL 056T17F5339

HP 1.50
RPM 1745
Voltage 575
Phase 3
Hz 60hz
Frame 56HC
Mounting Rigid/C-Flange
Enclosure TEFC
Material Cast Aluminum
Efficiency NEMA Premium
Rated Motor Output Power
1.5 HP
Rated Motor Speed 1745 r/min 60Hz
1430 r/min 50Hz
Rated Motor Voltage (+/-10%) 600V
Phase 3
Locked Rotor Current @ High Voltage 17.4204 A (I_n) @ 60Hz
A (I_n) @ 60Hz
Service Factor 1.25 @ 60Hz
1 @ 50Hz
Nominal Efficiency 86.5
Nominal Power Factor 0.75
