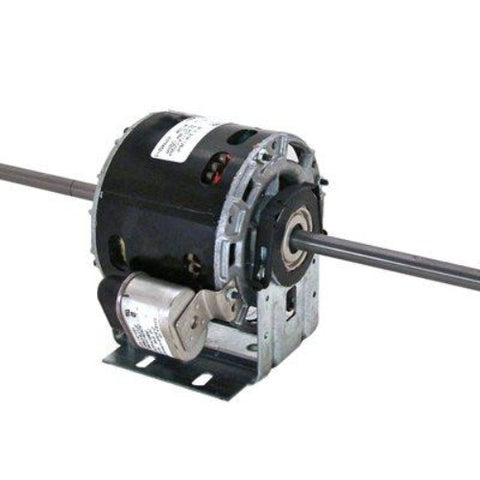

955, CENTURY, 1/6 HP, 1500 RPM, 115V, K048WGT0198013B, FR:42, 1192, US MOTORS, HVAC

CENTURY

$479.00

955 CENTURY, X955,1192 US MOTORS, K048WGT0198013B

Nameplate Specifications

Output HP:	1/6-1/12-1/20 Hp	Output KW:	0.13 kW
Frequency:	60 Hz	Voltage:	115 V
Current:	2.0-1.1-.68 A	Speed:	1500 rpm
Service Factor:	1	Phase:	1
Duty:	Continuous Air Over	Insulation Class:	B
Frame:	42Y	Enclosure:	Open Air Over
Thermal Protection:	Automatic	Ambient Temperature:	40 °C
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	3

OEM Direct Replacement Motor
5" Diameter - 42 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 6 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
1/2" Diameter Double Shaft with Flat
40" Leads
Resilient Base

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	4	Rotation:	Clockwise Lead End
Mounting:	Resilient Base	Motor Orientation:	Horizontal
Drive End Bearing:	Sleeve	Opp Drive End Bearing:	Sleeve
Frame Material:	Rolled Steel	Shaft Type:	Flat
Overall Length:	24.88 in	Frame Length:	3.42 in
Shaft Diameter:	0.500 in	Shaft Extension:	10.5X.5X10.4 in
