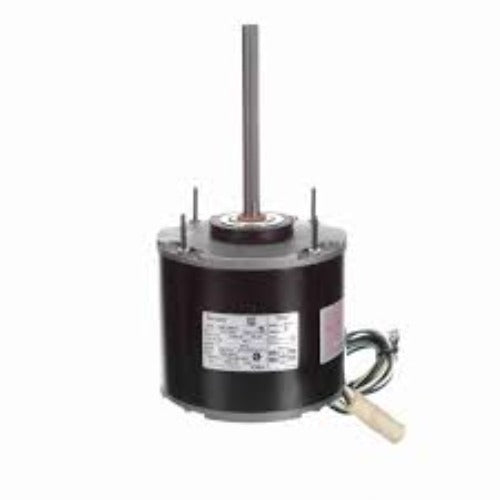

436A,Century, 1/3 Hp, 1075 Rpm, 460V,1Phase, Frame 48Y, Semi-Enclosed,

E-Motor Nations

$509.00

436A,Century, Ao Smith 436, Obsolete Replace Fasco D912, Replaced BY 3737H Us motors, FEH1036SU, CENTURY

Nameplate Specifications

Output HP:	1/3 Hp	Output KW:	0.25 kW
Frequency:	60 Hz	Voltage:	460 V
Current:	1.0 A	Speed:	1075 rpm
Service Factor:	1	Phase:	1
Duty:	Air Over	Insulation Class:	B
Frame:	48	Enclosure:	Semi Enclosed
Thermal Protection:	Automatic	Ambient Temperature:	60 °C
UL:	Recognized	CSA:	Y
CE:	N	Number of Speeds:	1

Technical Specifications

Electrical Type:	Permanent Split Capacitor	Starting Method:	Across The Line
Poles:	6	Rotation:	Reversible
Mounting:	Extended Studs	Motor Orientation:	Any
Drive End Bearing:	Ball	Opp Drive End Bearing:	Ball
Frame Material:	Rolled Steel	Shaft Type:	Double Flat
Overall Length:	11.68 in	Frame Length:	4.13 in
Shaft Diameter:	0.500 in	Shaft Extension:	6.0 in

KEY FEATURES

OEM Direct Replacement Motor
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Semi-Enclosed Air Over
Class B Insulation, 60°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
23" Leads
Extended Studs Shaft End, Resilient Ring Mounting
