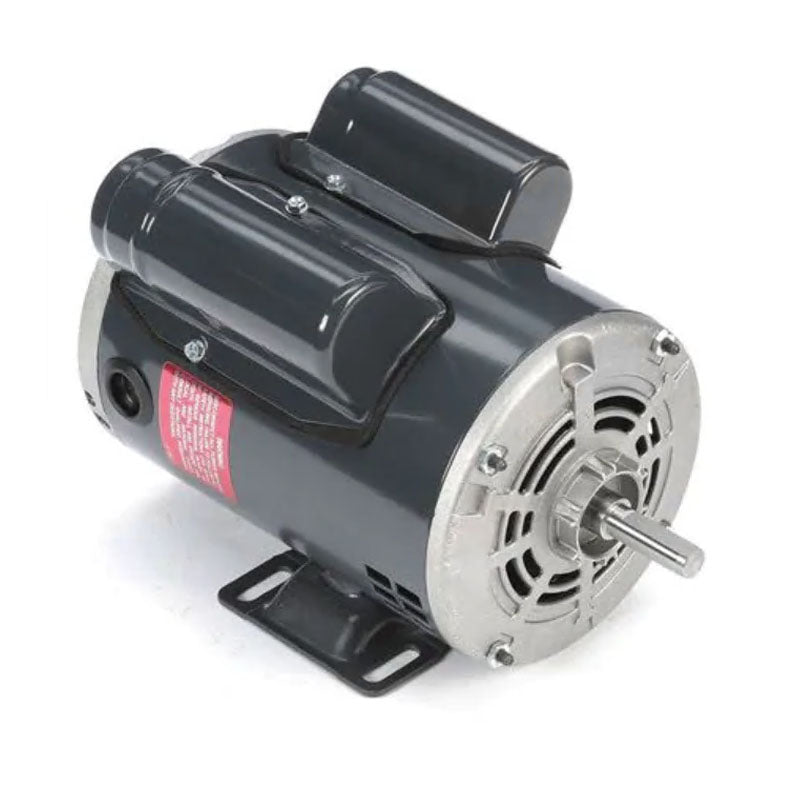

3768,Nidec,2 Hp,3450 Rpm,115/230V,Fr: 56,T063BPM1039013B,ODP,Compressor

3768, Nidec,

• Horsepower :3 SPL
• Voltage :115/230
• Amps :15.00/7.50
• RPM :3600
• Frequency :60 Hz
• "C" Dim. :11.60"
• Enclosure :Open Drip-Proof
• Shaft Dim. :5/8" x 1-7/8"
• Type :Capacitor Start/Run
• Speeds :1
• Diameter :6-1/2"
• Frame :56
• Bearings :Ball
• Rotation :CCWSE
• Protector :Manual
• Service Factor :1.00
• Phase :1
• Ambient Temp. :40°C
• Feature(s) :Class 'B' Insulation, Rigid Bas
• Compressor motor Replace B383 Century, Weg 10698252, 00336OS1BCDF56, MO0YC0X0X0000102084
