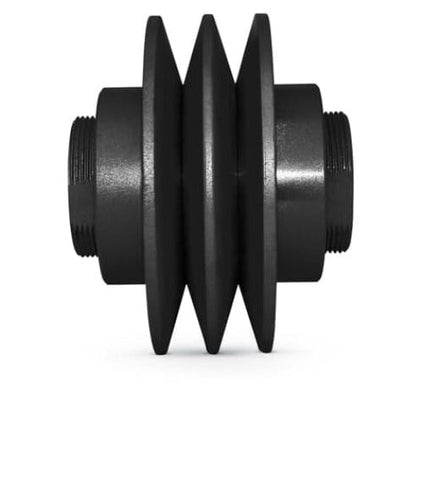

2VP60-1-1/8'' ,Masterdrive ,Dia 6'' ,Bore 1-1/8'' ,Variable Pitch Adjustable ,2 Grooves
E-Motor Nations

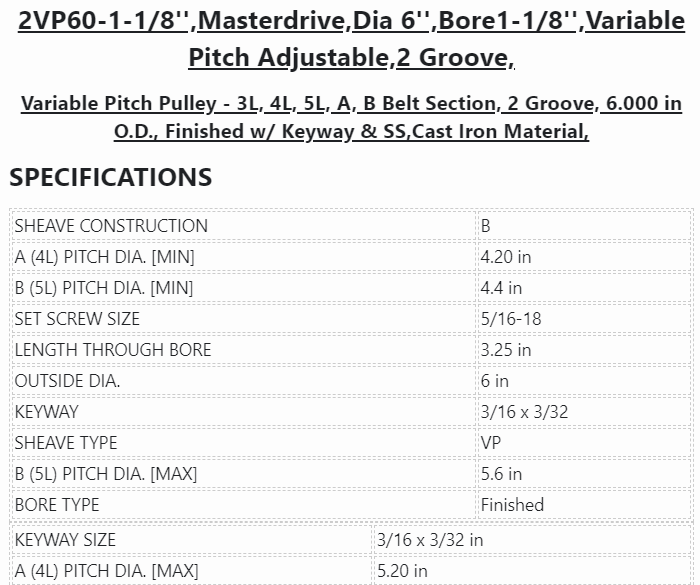

2VP60-1-1/8'',Masterdrive,Dia 6'',Bore1-1/8'',Variable Pitch Adjustable,2 Groove,
Variable Pitch Pulley - 3L, 4L, 5L, A, B Belt Section, 2 Groove, 6.000 in O.D., Finished w/ Keyway & SS,Cast Iron Material,
SPECIFICATIONS
| SHEAVE CONSTRUCTION |
B |
| A (4L) PITCH DIA. [MIN] |
4.20 in |
| B (5L) PITCH DIA. [MIN] |
4.4 in |
| SET SCREW SIZE |
5/16-18 |
| LENGTH THROUGH BORE |
3.25 in |
| OUTSIDE DIA. |
6 in |
| KEYWAY |
3/16 x 3/32 |
| SHEAVE TYPE |
VP |
| B (5L) PITCH DIA. [MAX] |
5.6 in |
| BORE TYPE |
Finished |
| KEYWAY SIZE |
3/16 x 3/32 in |
| A (4L) PITCH DIA. [MAX] |
5.20 in |

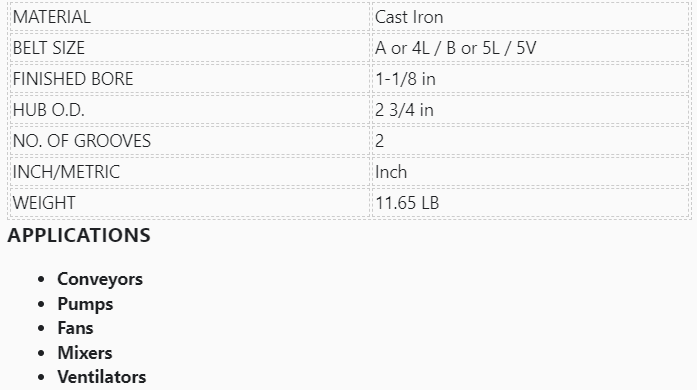

| MATERIAL |
Cast Iron |
| BELT SIZE |
A or 4L / B or 5L / 5V |
| FINISHED BORE |
1-1/8 in |
| HUB O.D. |
2 3/4 in |
| NO. OF GROOVES |
2 |
| INCH/METRIC |
Inch |
| WEIGHT |
11.65 LB |
APPLICATIONS
- Conveyors
- Pumps
- Fans
- Mixers
- Ventilators
FEATURES
- Durable cast iron
- Statically balanced
- Approximate adjustment range 1.3:1
- Positive locking of adjustment settings
