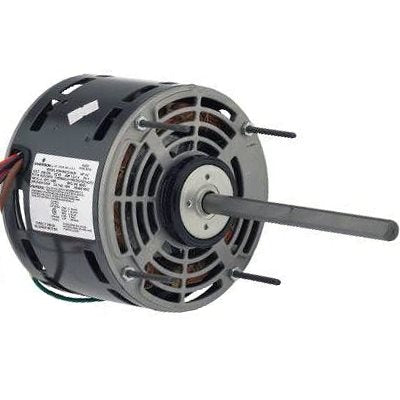

1697, Us Motors, 3/4 Hp, 1625 Rpm, 208-230V. Fr: 48Y, ODP, 1Ph,

E-Motor Nations

$426.80

1697 Us motors, Model #: K055KDH9451022B, Replace HE2H132N, 77-041-000,

Horsepower :3/4
Voltage :208-230
Amps :4.4-4.2
RPM :1625
Frequency :60 Hz
Length :5.60"
"C" Dim. :11.70"
Enclosure :Open Air Over
Shaft Dim. :1/2" x 5.00"
Type :Permanent Split Capacitor
Speeds :3
Diameter :5-5/8"
Frame :48YZ
Bearings :Self Aligning Bearing
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :40°C
Feature(s) :Class 'A' Insulation, 2.5” Diameter Hub Rings Included, SAB Bearings Have All Angle Thrust System, 24” Leads
Weight (lbs.) :19
