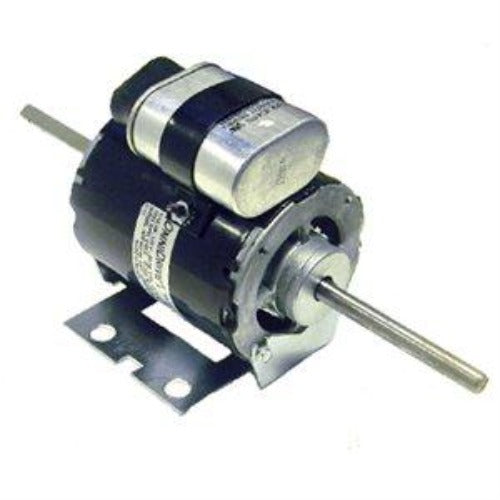

12027,Omnidrive, 1/12Hp, 1625/3 Spd, 115 Volts,1.2A,Venmar, R2-R462,

E-Motor Nations

$349.95

12027, OMNIDRIVE

*** replace fASCO 7190-0921 with modification, the original shaft size is 5/16"

*** Replacement motor shaft size is 3/8". need to oversize the blower wheel holes with a 3/8" drill bit.

Horsepower : 1/12
Voltage : 120
Amps : 1.20
RPM : 1625
Frequency : 60 Hz
Length : 4-1/8”
Enclosure : Open
Shaft Dim. : 3-1/2” x 3/8” x 3-9/16”
Type : Permanent Split Capacitor
Speeds : 3
Diameter : 3.3”
Bearings : Sleeve
Rotation : CWLE
Protector : Thermally Protected
Service Factor : 1.00
Phase : 1
Ambient Temp. : 40°C
Feature(s) : Capacitor Included, Welded Base, Double Shaft
Weight (lbs.) : 6

VENMAR REPLACE 7190-0921, 7190-2271, 02100, 1206, 12151, 71902784, 7190-2784, 7190-1359, 71901359, HVR2100, 5KCP84DFK149, ELESM366, 5KCP84DFK149BP, R2-R462
