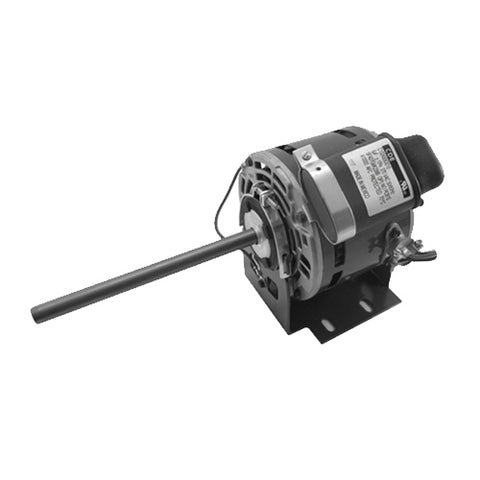

1175, Us Motors, K048DSJ0221012B, 1/2Hp, 1100 Rpm, 115 Volts, Frame:42Y,
1175, Us Motors

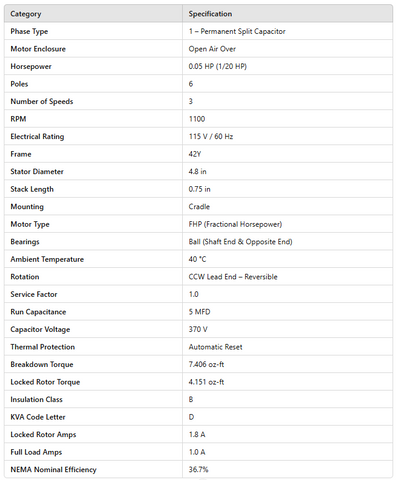

| Category | Specification |
|---|---|
| Model Number | K048DSJ0221012B |
| Phase Type | 1 Permanent Split Capacitor |
| Motor Enclosure | Open Air Over |
| Horsepower | 0.05 |
| Poles | 6 |
| Number of Speeds | 3 |
| RPM | 1100 |
| Hertz | 60 |
| Volts Primary | 115 V |
| Volts | 115 |
| Frame | 42 |
| Shaft Code | Y |
| Stator Diameter | 4.8 |
| Stack | 0.75 |
| Mounting | Cradle |
| Motor Type | FHP |
| Opposite End Bearing | Ball |
| Shaft End Bearing | Ball |
| Ambient Temperature | 40 °C |
| Rotation | CCW Lead End Reversible |
| Service Factor | 1 |
| Run Capacitance (MFD) | 5 |
| Run Capacitance (Volts) | 370 |
| Shipping Weight | 8 lbs |
| Thermal Protection | Automatic Reset |
| Breakdown Torque | 7.406 oz-ft |
| Locked Rotor Torque | 4.151 oz-ft |
| Insulation Class | B |
| KVA Code Letter | D |
| Locked Rotor Amps | 1.8 |
| NEMA Nominal Efficiency | 36.7 |
| Full Load Amps Primary | 1.0 |
