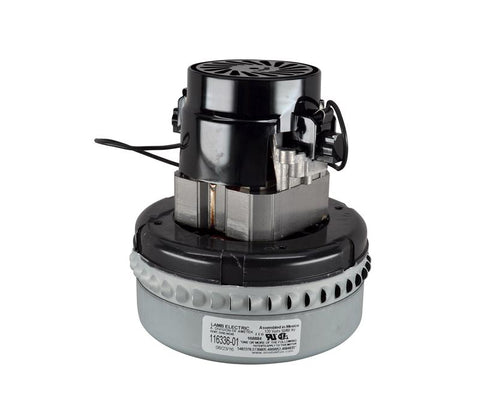

116336-01, Ametek Lamb, 120V, 2-stage, 5.7 inch Dia, 70250953, 274W, 8.0A,

AMETEK LAMB

$189.92

116336-01, Ametek Lamb,

Technical Specs

Item Vacuum Motor
Motor/Blower Type Bypass
Discharge Peripheral Bypass
Blower Stages 2
No. of Speeds 1
Motor Enclosure Design Open
CFM @ 2-In. Orifice 94.0
Vacuum (H2O Sealed) 84.3
Voltage 120
Hz 60/50
Phase 1
Max. Amps 8.0
Max. Air Watts 274
Motor Mounting Type Lug
Motor DesignUniversal AC/DC
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. Class A
Bearings Ball
Ambient Temperature 40 Degrees C
Body Dia.5.7"
Overall Height6-5/16"
Mounting Brackets Thermoset
Duty Intermittent
Average Life500 hr.
StandardsUL Recognized (E47185), CSA Certified (LR31393)
Replacement Brushes2UV81
