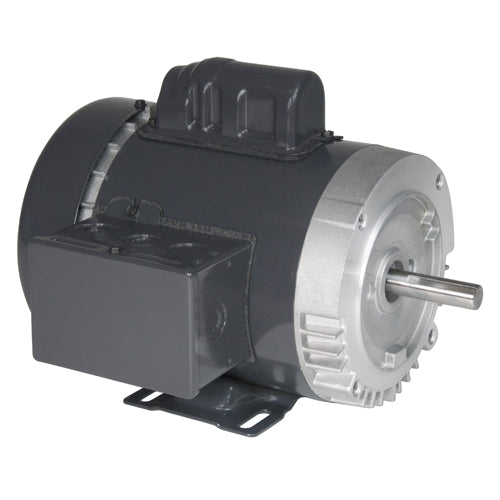

T2C2JHC, US Motors, 2 Hp, 1725 Rpm, 115-230 Volts, Frame:56, TEFC,

E-Motor Nations

$562.77

T2C2JHC, US Motors

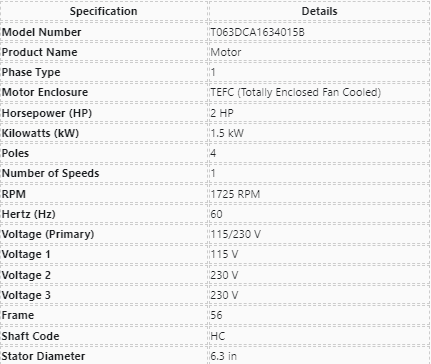

Specification	Details
Model Number	T063DCA1634015B
Product Name	Motor
Phase Type	1
Motor Enclosure	TEFC (Totally Enclosed Fan Cooled)
Horsepower (HP)	2 HP
Kilowatts (kW)	1.5 kW
Poles	4
Number of Speeds	1
RPM	1725 RPM
Hertz (Hz)	60
Voltage (Primary)	115/230 V
Voltage 1	115 V
Voltage 2	230 V
Voltage 3	230 V
Frame	56
Shaft Code	HC
Stator Diameter	6.3 in

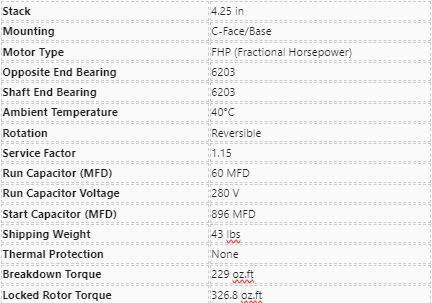

Stack	4.25 in
Mounting	C-Face/Base
Motor Type	FHP (Fractional Horsepower)
Opposite End Bearing	6203
Shaft End Bearing	6203
Ambient Temperature	40°C
Rotation	Reversible
Service Factor	1.15
Run Capacitor (MFD)	60 MFD
Run Capacitor Voltage	280 V
Start Capacitor (MFD)	896 MFD
Shipping Weight	43 lbs
Thermal Protection	None
Breakdown Torque	229 oz.ft
Locked Rotor Torque	326.8 oz.ft
Insulation Class	F
KVA Code Letter	H
Locked Rotor Amps	113 A
NEMA Nominal Efficiency	81.5%
Full Load Amps (Primary)	18.9/10.3-9.4 A
Service Factor Amps (Primary)	20.6/10.3 A
