SS751 MOTOR, 1/3 HP, Unit Heater Direct Drive, 5.5"DIA., 115V, BALL BEARING, OMNIDRIVE Motor

OMNIDRIVE

$259.00

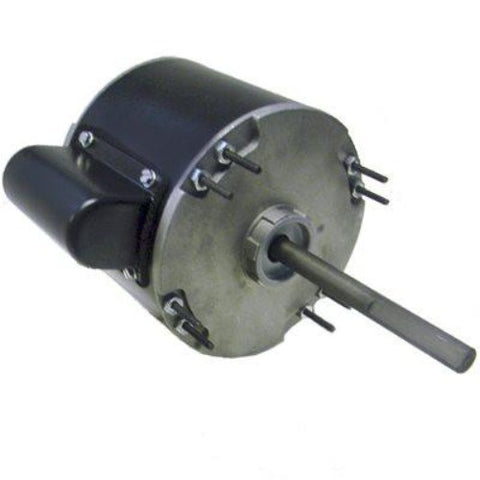

SS751 OMNIDRIVE MOTOR Direct Drive Unit Heater Motor
Application Unit Heaters, Oil Burner and Other Shaft-mounted Fan and Blower Equipment in Dusty, Dirty, Non-combustible Environments.
Optional Mounting Base UH-UHK.

Horsepower :1/3
Voltage :115
Amps :5.00
RPM :1075
Frequency :60 Hz
Length :4.50”
Enclosure :Totally Enclosed Air Over
Shaft Dim. :1/2" x 4.50”
Type :Permanent Split Capacitor
Diameter :5.5”
Frame :48
Bearings :Ball
Rotation :Reversible
Protector :Thermally Protected
Phase :1
Ambient Temp. :40°C
Feature(s) :Capacitor Included, Round body, Includes Resilient Rings, Reversing Plug, Class 'B' Insulation, Stud Mount
Weight (lbs.) :13
Speeds :1
Service Factor :1.00

Replaces Old Numbers: 183, 3212, 3M357, 3M900, 663001002789, 70201, 7126-0333, 777980040783, 9036, D732, K9028, K9036, UE183, UH1036, UH1036V1, US1036, X304, X308, UH-9036, EMERSON 9036, EM-9036
