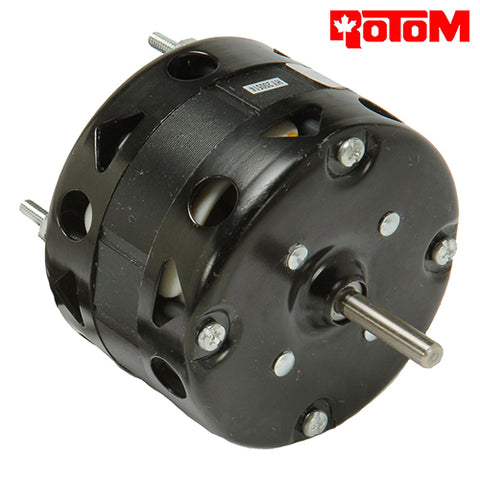

R3-R302, 1/100 HP, 1550 RPM, 230V, 0.2 AMPS, CW, SLEEVE BEARING, ROTOM, ALLTEMP Replaces E01004, L81512W1

ROTOM

$104.90

Product Specifications
Body Diameter (Inches):	3.3
HP:	1/100
Volts:	230
Amps:	0.20
RPM:	1550
Speeds:	1
Rotation: Opposite Shaft End:	CW
Bearing:	Sleeve
Enclosure:	Open
Shaft: Diameter x Length (Inches):	1/4 x 1.38
Motor Type:	Shaded Pole
Body Length (Inches):	2.25
Mounting:	4 Rear Studs

1/100 HP - 240 Voltage - 0.30 Amps - SP Type - 1/1550 RPM - CW Rot. - 1.94'' Body - 3.3'' Frame - Sleeve Bearing - - Cap. - 1.3"×1/4" Shaft

Rotom R3-R302 Electric Wall heaters & General Replacement Motor
Application Wall Heaters & Other applications using a motor with these specifications.
Use with Blanchard Ness, Federal Pioneer - Westcan, Camco Heaters.
Replaces E01004, L81512W1.
