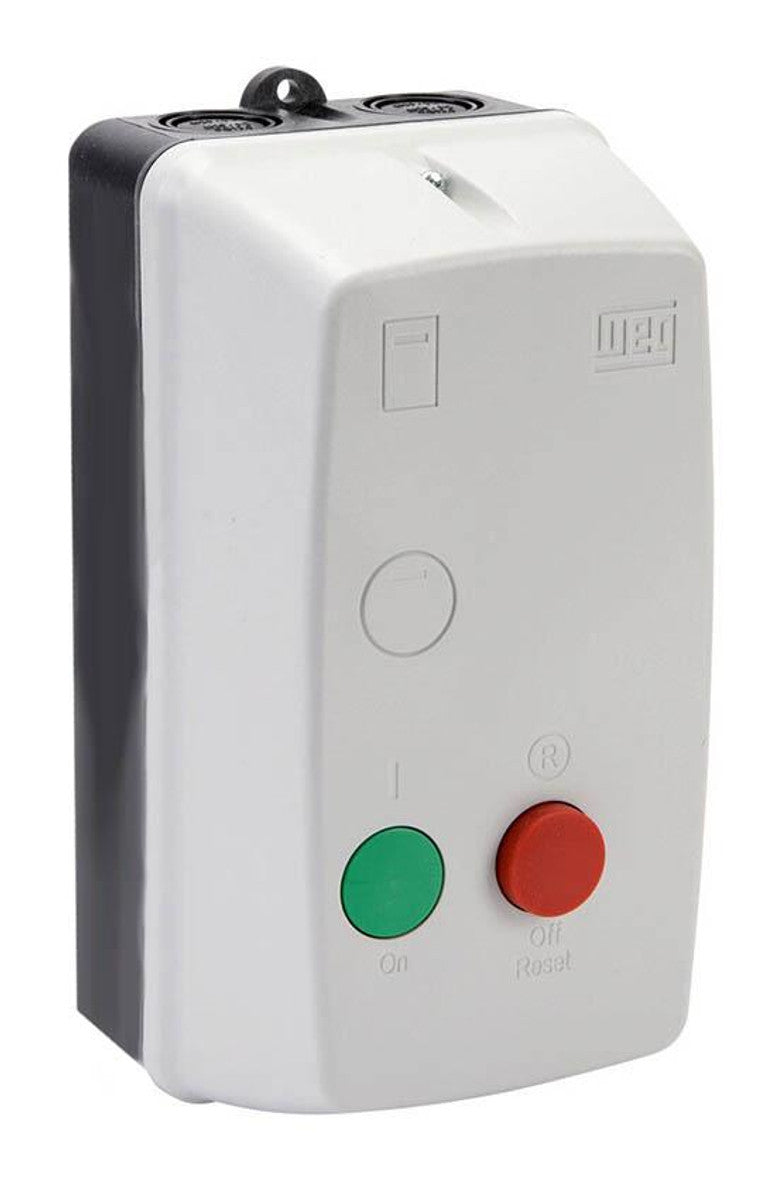

PESWS-B40D15AX-RM70, Start-Stop,15Hp/240V,20Hp/460V,Coil 120V,WEG

PESWS-B40D15AX-RM70, Start-Stop,15Hp/240V,20Hp/460V,Coil 120V,WEG

E-Motor Nations

  • $492.19


PESWS-B40D15AX-RM70, Start-Stop,

3 Hp @ 115V 1 Phases

 15Hp @ 240V,

20Hp @ 460V,

Coil 120V,WEG

These NEMA 4X enclosed magnetic motor starters feature components that meet IEC design standards, UL horsepower ratings and are available in single and three phase power configurations up to 75HP at 600Volts. The PESW magnetic starters are ideal to help protect motors and ensure smooth operation.

Description

WEG NEMA-4X Magnetic Starters for Motor Protection

WEG offers non-reversing and non-combination NEMA-4X magnetic starters up to 75 HP at 460V. These starters feature components that meet both IEC design standards and UL horsepower ratings, including WEG contactors and overload relays.

The PESW magnetic starters are ideal for protecting motors, ensuring smooth and reliable operation year after year. They are assembled in a durable NEMA 4X enclosure and are available in two options.

For more information or to place an order, please don't hesitate to contact us.

Feature

  • High horsepower ratings in four compact sizes

  • Bimetallic Overload Relays

  • Adjustable trip current

  • Direct heated bimetallic elements – class 10

  • Ambient temperature compensated

  • Phase-loss sensitivity protection

  • Selectable Manual or Automatic RESET

  • Electrically isolated NO-NC auxiliary contacts

  • NEMA 4X polymeric enclosure with knockouts
